This product has been discontinued and removed from our shelves.

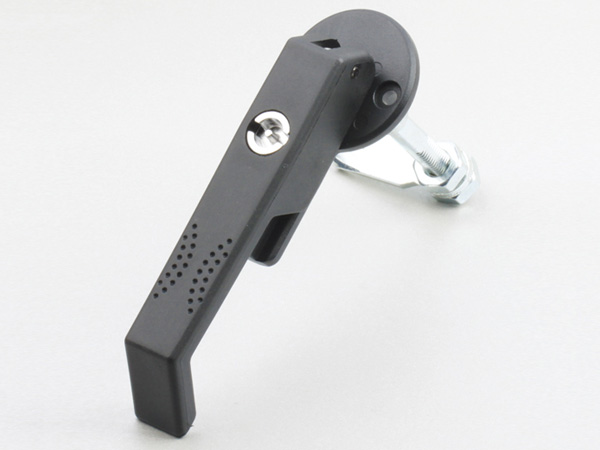

Opened or closed in quarter turning, this MS859 L handle lock makes use of the PA handle, black pocked powder coated ZDC housing, bright chrome plated ZDC insert and white zinc plated steel shaft. The K15 series of keys are optional and the S1B45Y00005 cam is the default configuration. Moreover, the thickness of the steel bolt is 4mm.
Technical Specifications| Specification | Model | ERP |
| Double Bit | MS859-1-1 | MS859Z1BT01001 |
| Triangular 8mm | MS859-1-2 | MS859Z1BT04001 |
| Square 8×8mm | MS859-1-3 | MS859Z1BT07001 |
| Square 7×7mm | MS859-1-4 | MS859Z1BT06001 |
| Square 6×6mm | MS859-1-5 | MS859Z1BT05001 |
| Hexagon Female | MS859-1-6 | MS859Z1BT09002 |
| Slot | MS859-1-7 | MS859Z1BT10001 |
| Triangular 7mm | MS859-1-8 | MS859Z1BT14001 |
Remarks: ERP excludes cam (cut out square 8×8mm).
