This product has been discontinued and removed from our shelves.

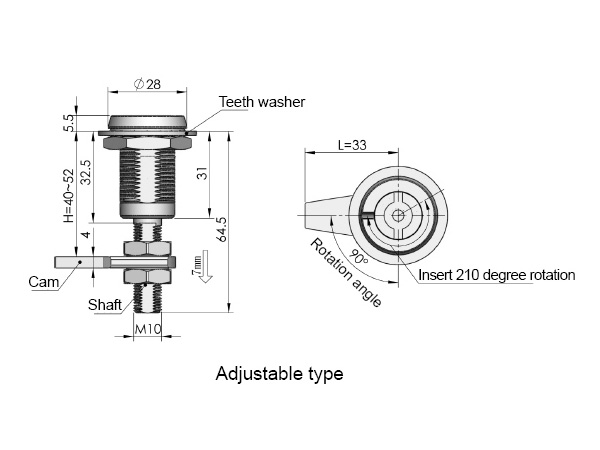

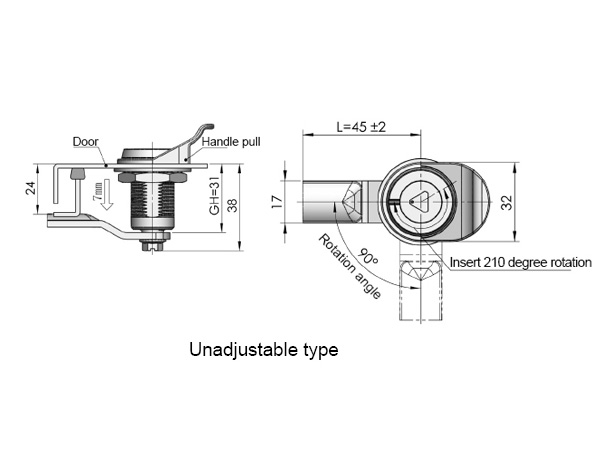

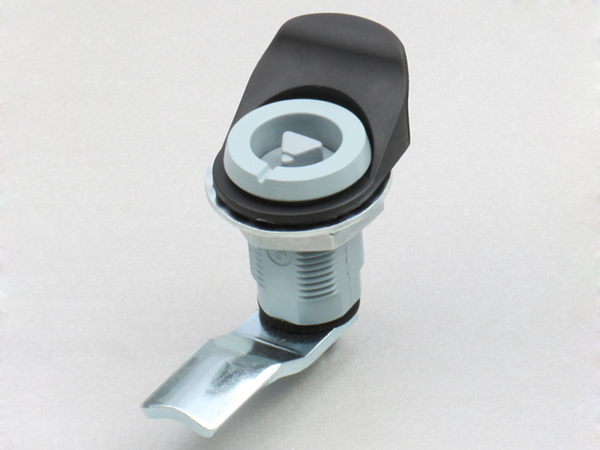

The MS816-1 quarter turn lock is equipped with the blue gray powder coated ZDC housing and insert, white zinc-plated steel cam, as well as PA handle pull. The product can be opened or closed through rotating the cam in right angle. With the K15 series of keys for selection, the product is configured with the S1B45N07005 default cam for the unadjustable type. The adjustable type chooses the S1M33Y00002 default cam, whose tensile strength is 4.
Technical Specification| Specification | Unadjustable Type | Adjustable Type | ||
| Model | ERP | Model | ERP | |
| 8mm Triangle | MS816-1-1 | MS816Z1DT04009 | MS816-1A-1 | MS816Z1DT04015 |
| S Hook | MS816-1-2 | MS816Z1DT03007 | MS816-1A-2 | MS816Z1DT03010 |
| 8mm Socket hexagon | MS816-1-3 | MS816Z1DT24004 | MS816-1A-3 | MS816Z1DT24005 |
| 10mm Hexagon | MS816-1-4 | MS816Z1DT25001 | MS816-1A-4 | MS816Z2AT25001 |
| 8mm Square | MS816-1-5 | MS816Z1DT07001 | MS816-1A-5 | MS816Z1DT07003 |
| 7mm Square | MS816-1-6 | MS816Z1DT06001 | MS816-1A-6 | MS816Z1DT06003 |
| 9mm Square | MS816-1-8 | MS816Z1DT26001 | MS816-1A-8 | MS816Z1DT26003 |
| Slot | MS816-1-9 | MS816Z1DT10001 | MS816-1A-9 | MS816Z1DT10003 |
| 7mm Triangle | MS816-1-10 | MS816Z1DT14002 | MS816-1A-10 | MS816Z1DT14003 |
| Abnormal | MS816-1-12 | MS816Z1DT21001 | MS816-1A-12 | MS816Z1DT21004 |
