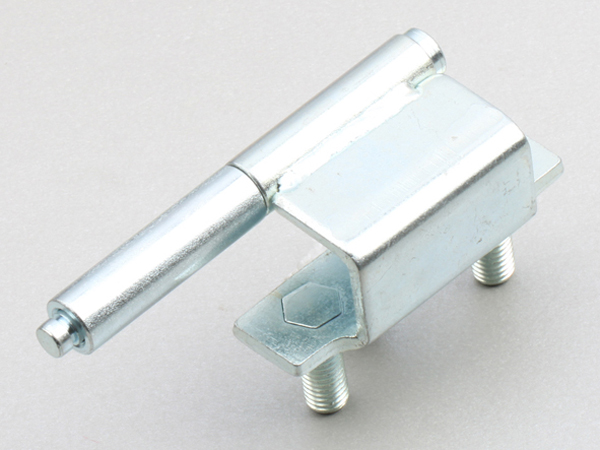

The CL218 concealed hinge is available in many types including the CL218-1 type, CL218-2 type and CL218-3 type. This product adopts the steel hinge leaf plated with the white zinc. Its opening angle is 90 degree.

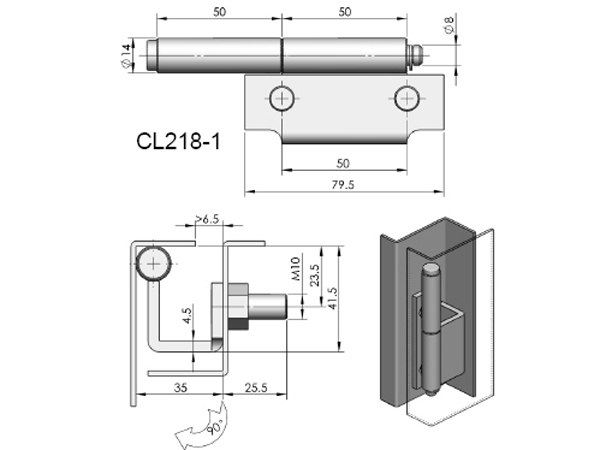

Technical Specifications of CL218-1
Model |
ERP |
CL218-1 |
CL218F3D001 |

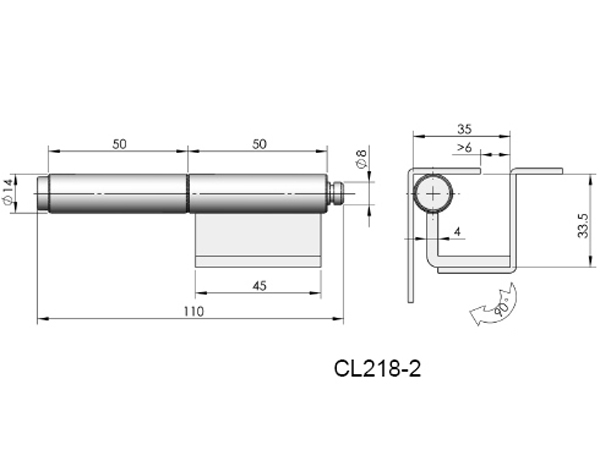

Technical Specifications of CL218-2
Model |
ERP |
CL218-2 |
CL218F3D002 |

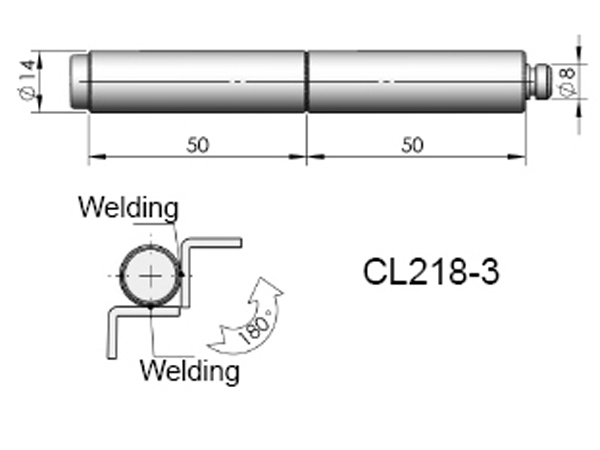

Technical Specifications of CL218-3
Model |
ERP |
CL218-3 |
CL218F3D003 |
