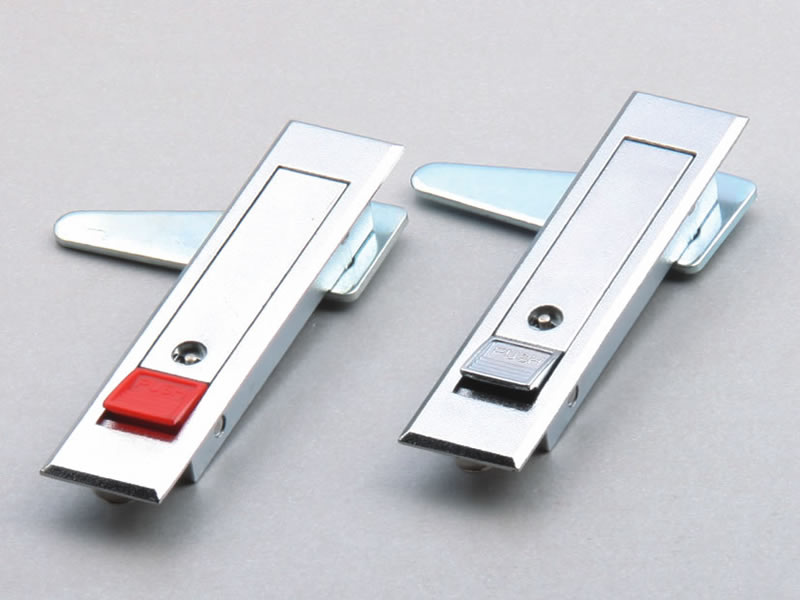

MS728 Paddle Lock

•

Technical Specifications

Material	Zinc alloy housing and lock cylinder. Zinc alloy or PA button. Carbon steel cam.
Finish	White zinc plated steel cam.
Usage	Quick-open, easy and fast installation. Cam can be bended to suit different stop heights.
Handle tension	≤500N
Max. static load	350N

Note: Default cam material number: S1D56Y00002

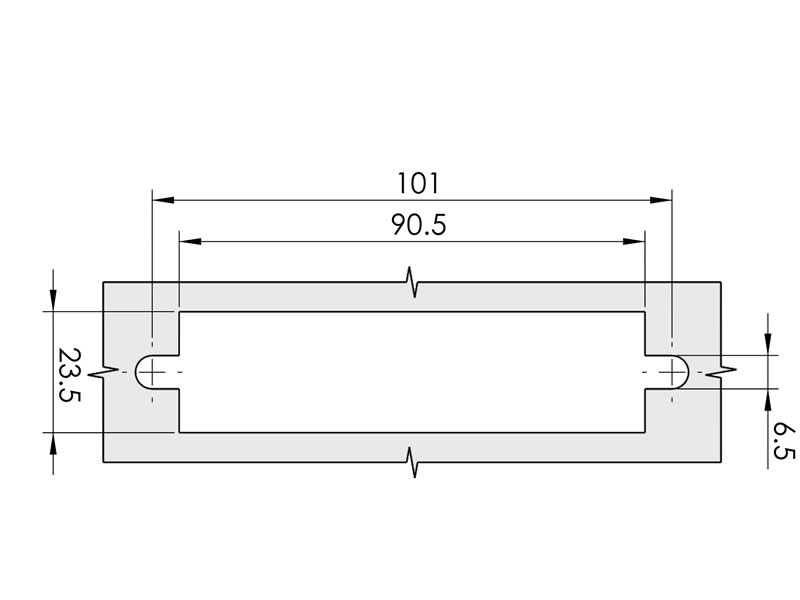

Drawing

•
