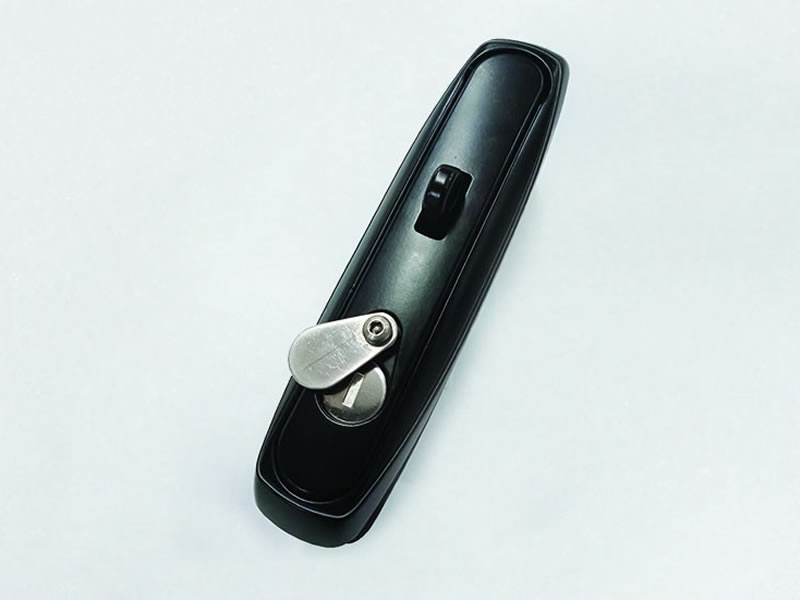

MS818-1A Paddle Lock

•

Technical Specifications

Material	Aluminum alloy housing, zinc alloy handle and padlock, carbon steel support and cam.
Finish	Black painted housing.
Usage	Quick-open, easy and fast installation. The changeover of cam realizes single-point locking or three-point locking.

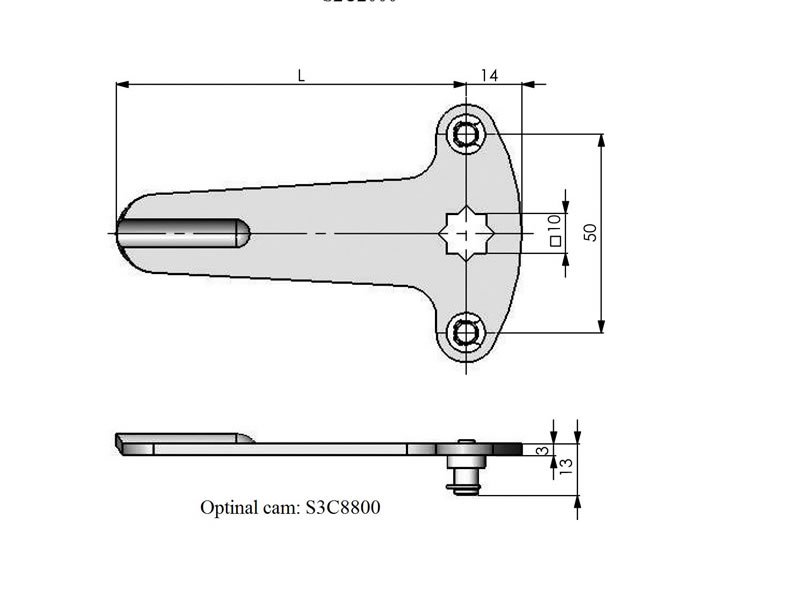

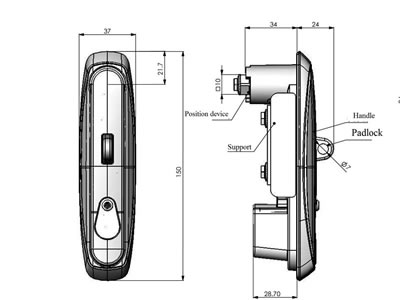

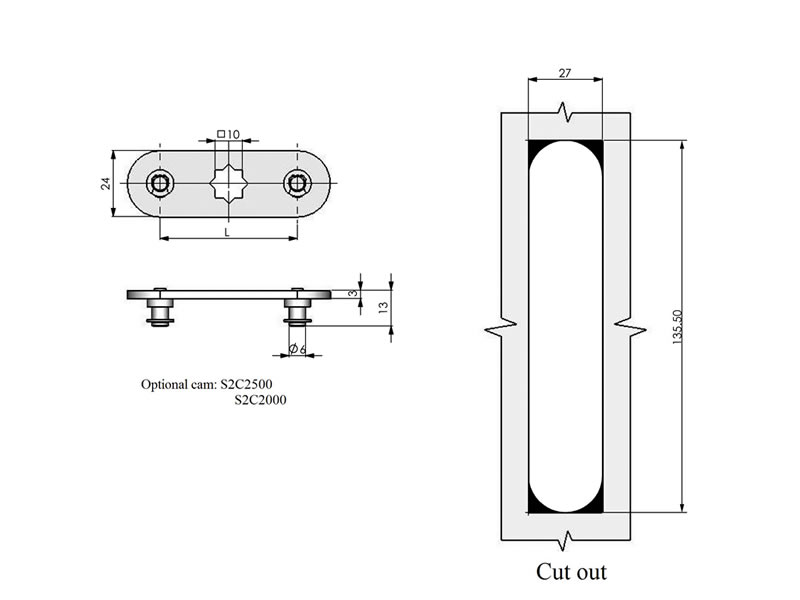

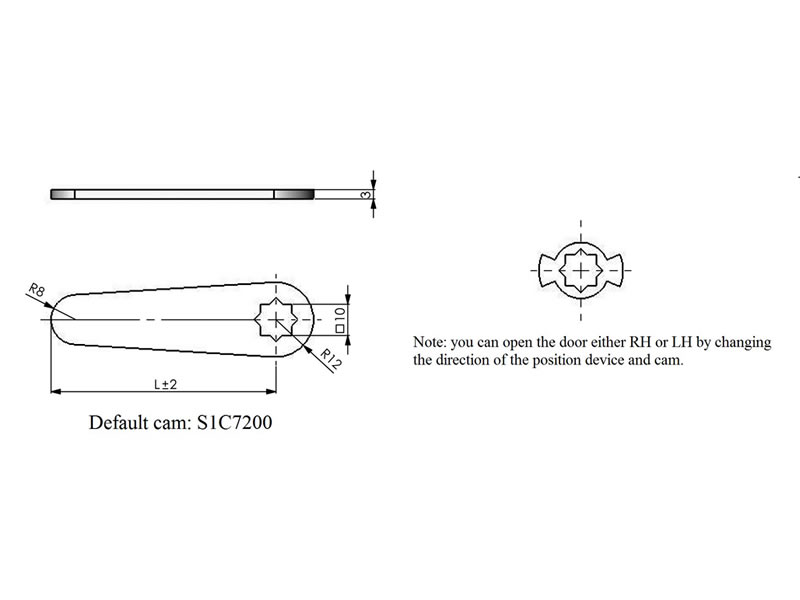

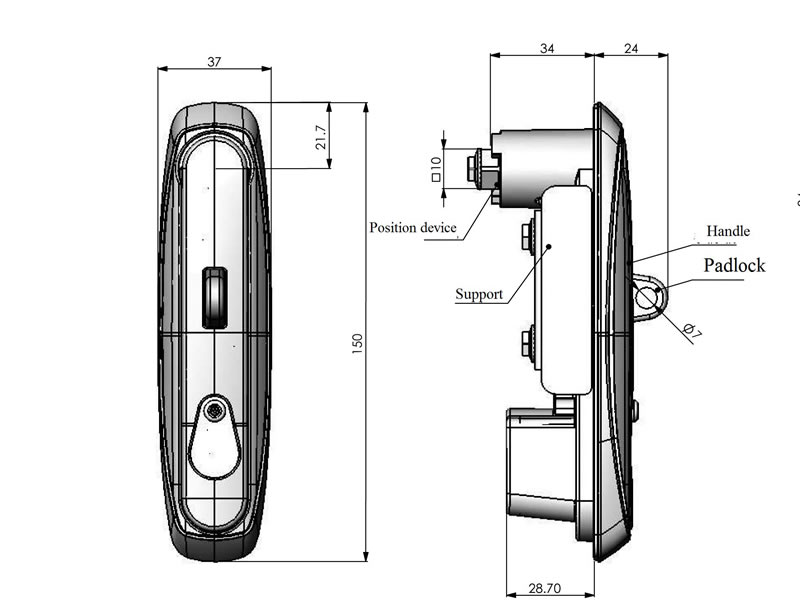

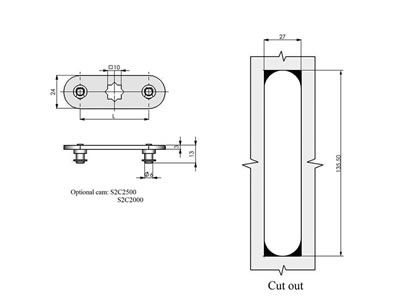

Drawing

•
•
•
•
