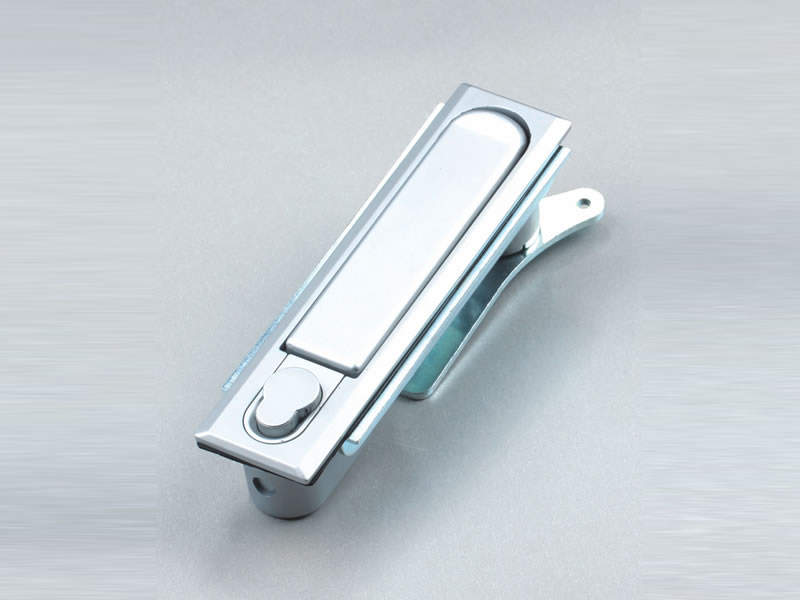

MS818-3B Paddle Lock

•

Technical Specifications

Material	Zinc alloy handle and padlock, carbon steel support and cam
Finish	Nanometer painted housing and handle, bright chrome plated padlock, white zinc plated support and cam.
Usage	Quick-open, easy and fast installation. The changeover of cam realizes single-point locking or three-point locking.
Handle tension	≤500N
Handle torque	≤28N.m
Max. static load	300N

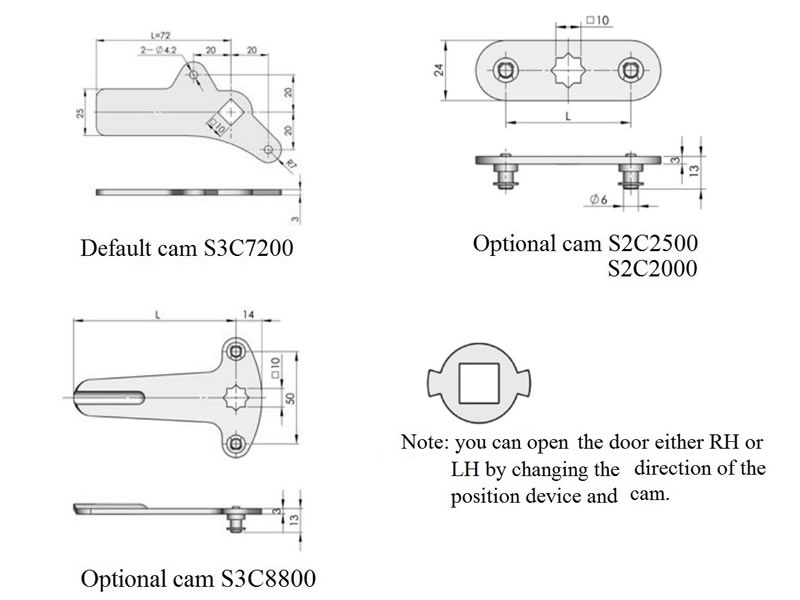

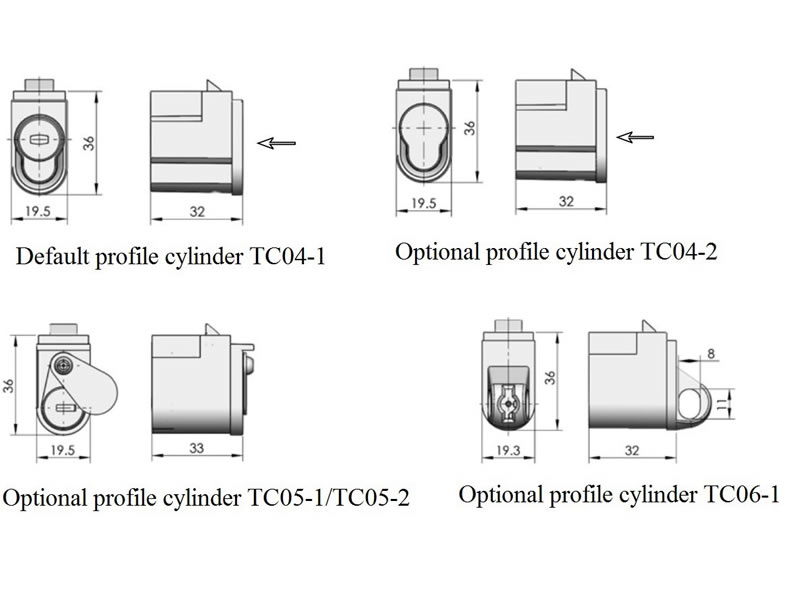

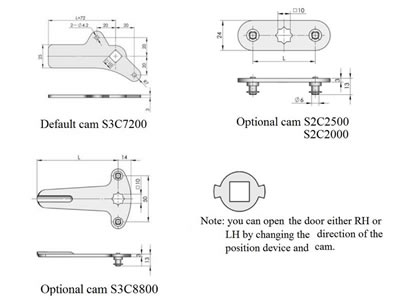

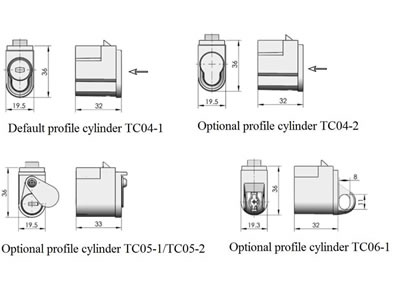

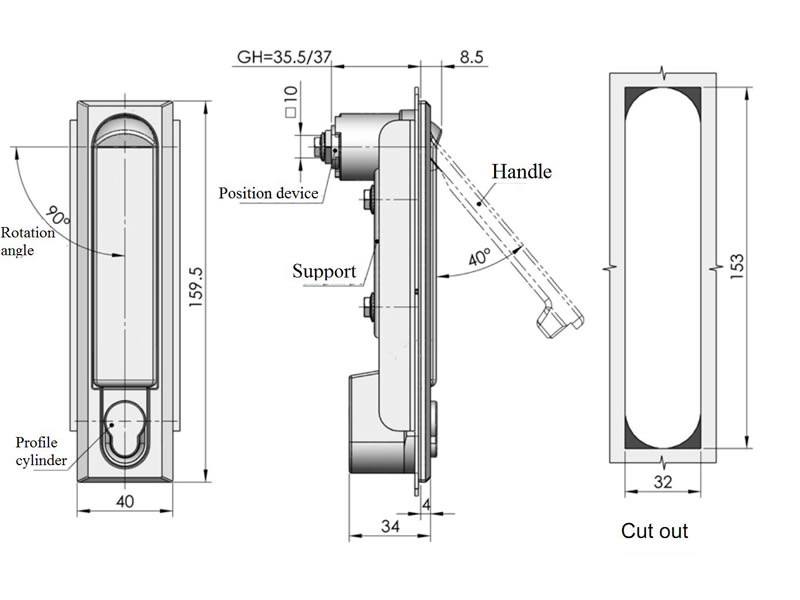

Drawing

•
•
•
