CL283 Exposed Axle Hinge

Home » Products » Hinge » Exposed Axle Hinge » CL283 Exposed Axle Hinge
inquiry form

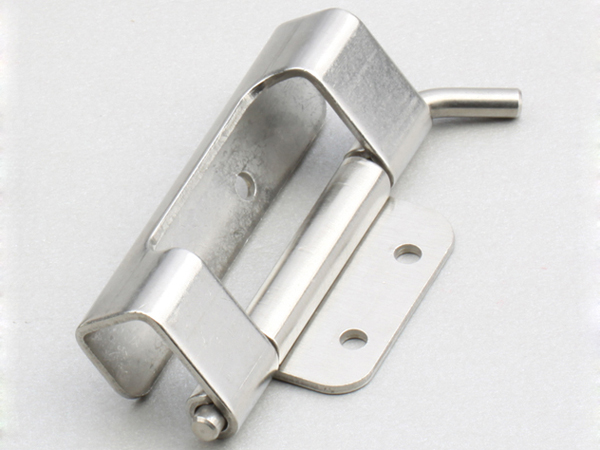

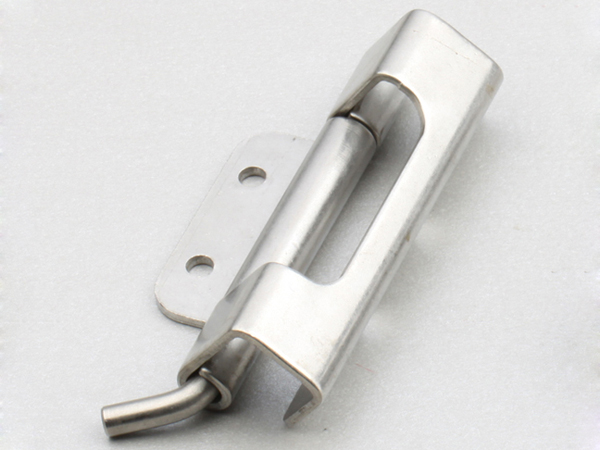

The CL283 exposed axle hinge is diversified in types, such as the CL283-1 type, CL283-2 type and CL283-4 type. Our product is equipped with the stainless steel parts, like the hinge leaf, pin, etc.

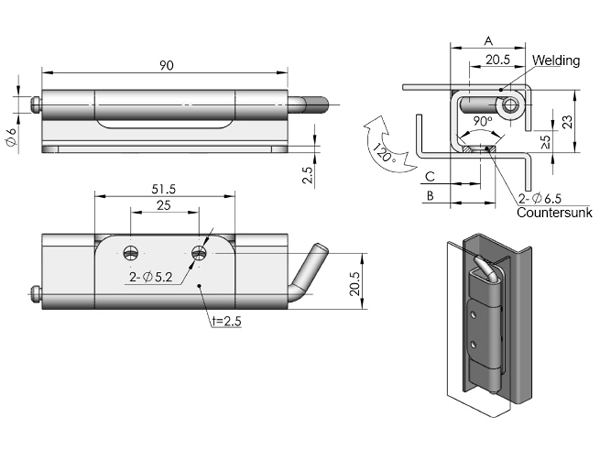

Technical Specifications of CL283-1 and CL283-2
ERP Model A B C Application
CL283S00001 CL283-1 27.5 16.5 11 Opening angle 120°
CL283S00002 CL283-2 33.5 21 14.5
Technical Specifications of CL283-4
Model ERP Application
CL283-4 CL283S00003 Opening angle 140°

Related Names
Stainless Steel Power Cabinet Hardware | Different Opening Angle Cabinet Door Parts | Exposed Axle Fastener for Power Distribution Cabinet
