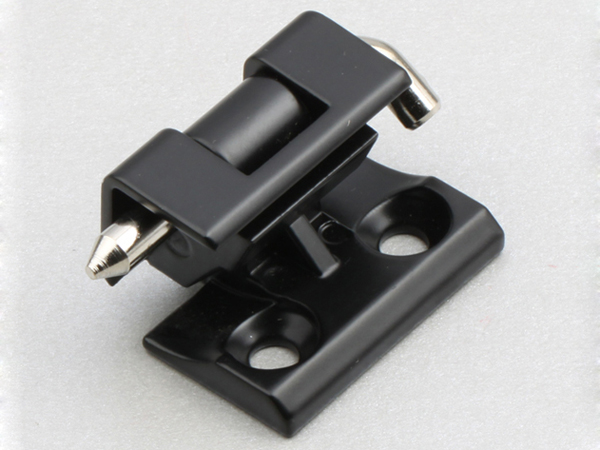

This CL212 exposed axle hinge is equipped with the black powder coating ZDC hinge, the steel pin coated with nickel or the nylon pin for option. Its opening angle is as large as 180°.

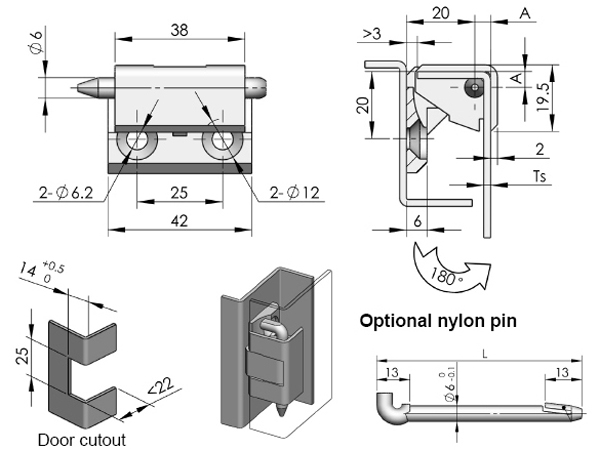

Technical Specifications| Specification | A | Model | ERP |
| Suitable door thickness, Ts=2mm | 5.1 | CL212-1 | CL212Z1A001 |
| Suitable door thickness, Ts=3mm | 6.1 | CL212-2 | CL212Z1A003 |
| Suitable door thickness, Ts=1.5mm | 4.6 | CL212-3 | CL212Z1A004 |
| Part No. | L |
| PN001 | 57 |
| PN002 | 78 |
