CL219 Exposed Axle Hinge

Home » Products » Hinge » Exposed Axle Hinge » CL219 Exposed Axle Hinge
inquiry form

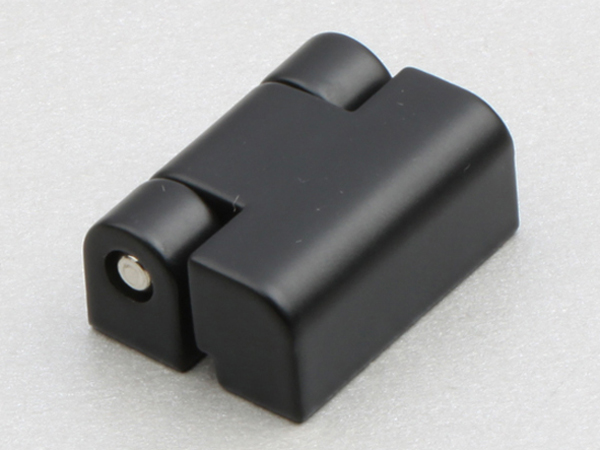

The CL219 exposed axle hinge adopts the ZDC hinge and the steel pin, which are plated with black powder and nickel respectively. This product allows opening in the angle of 180 degree.

O-ring seals onto the screw holes will be provided if required.

Technical Specifications
Model ERP Specification

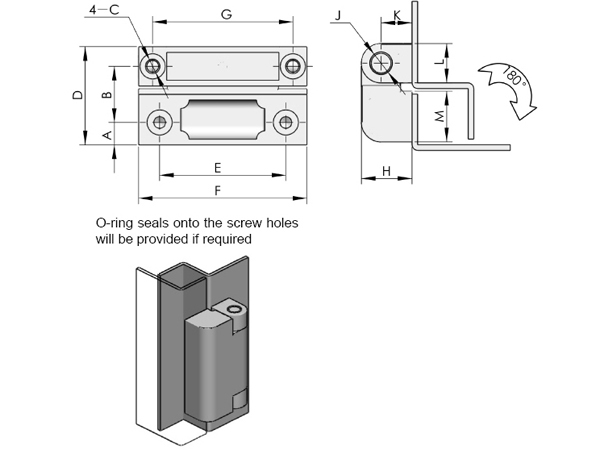

Structure A B C D E F G H J K L M
CL219-1 CL219Z1A001 Non-damping 8 20 M5 35 45 60 50 18 Φ8 11 14 18
CL219-2 CL219Z1A005 Non-damping 4 13 M4 22 22 30 22 13 Φ5 8 10 9
CL219-3 CL219Z1A007 Non-damping 4 18.5 M4 27.5 22 30 22 13 Φ5 8 10 14.5

Related Names
Nickel Plated Steel Hinge | Black Industrial Cabinet Motion Pats | Industrial Fastener with O-ring Seal
