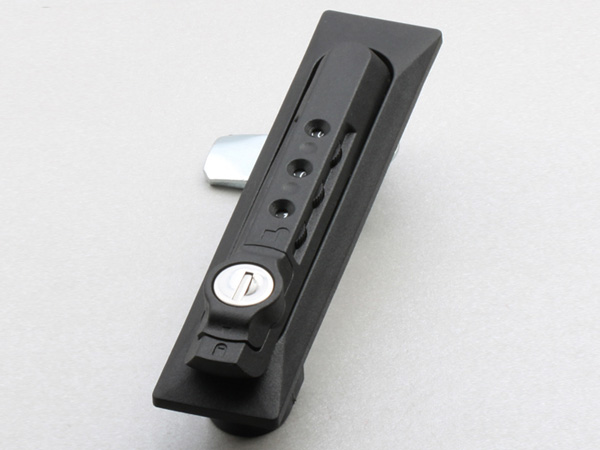

MS861-2A Swing Handle Lock

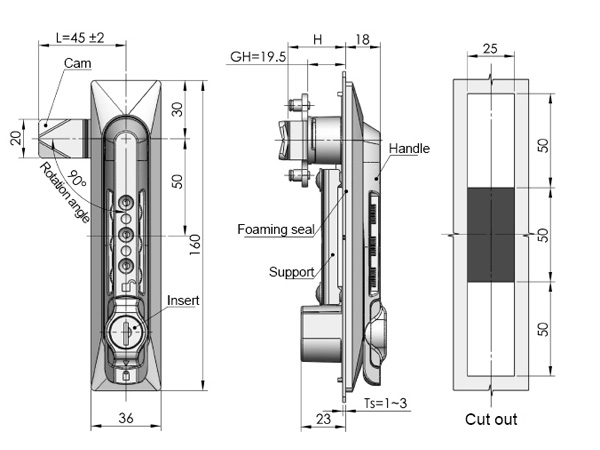

Technical Specifications

Model	MS861-2A
E RP	MS861N00140001
Main Material and Finish	Black PA housing, handle and knob, white zinc plated steel cam and support
Application	Refer to instruction
Default Key	K140

Remarks: ERP excludes cam (cutout square 8mm).

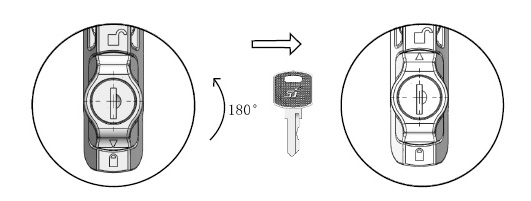

Use key to open the lock, without password

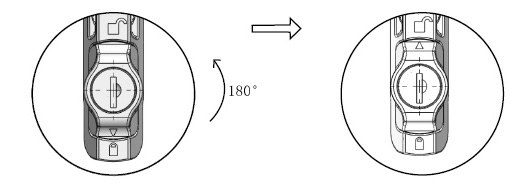

Enter password to open the lock, open lock with password instead of key, original password: "0,0,0"

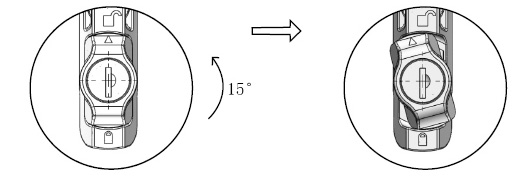

Change the password (It is correct), when knob indicates opening position, anti-clockwise rotation 15 degree to change the password.
