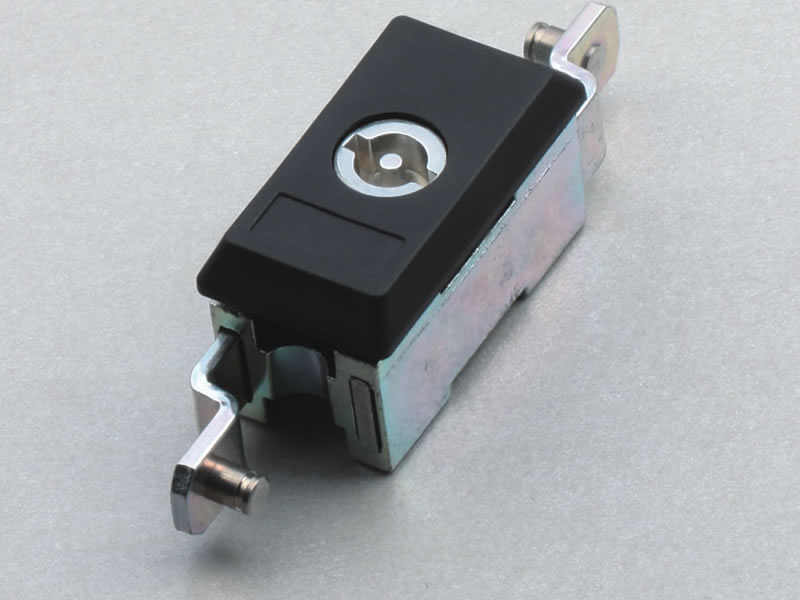

MS875-1A Swing Handle Lock

Home » Products » Swing Handle Lock » MS875-1A Swing Handle Lock
inquiry form



Technical Specifications
Material Black PA housing，zinc alloy profile cylinder, carbon steel cam and rod latch system
Finish Bright chrome-plated profile cylinder, white zinc plated cam and rod latch system
Usage The door can be opened or closed by swiveling the lock handle.
Input torque ≤10N.m

Notes
1.K15 series key is optional.
2.Cam material number: S1B45Y07005.

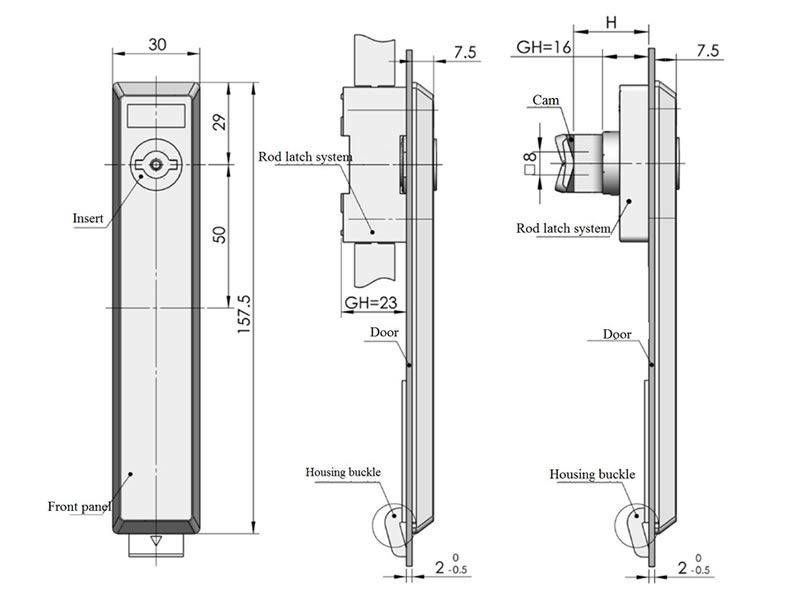

Drawing
