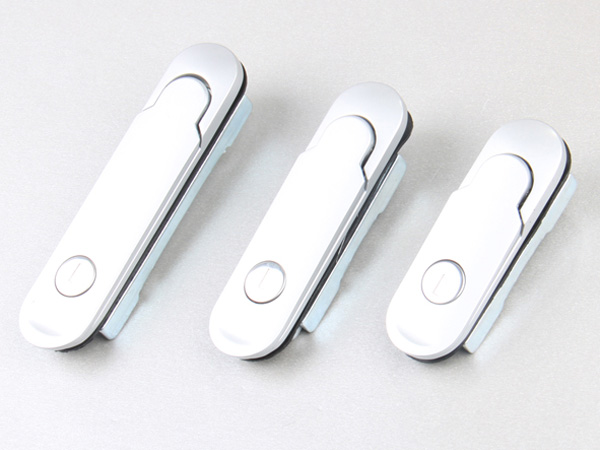

MS843 Swing Handle Lock

Technical Specifications

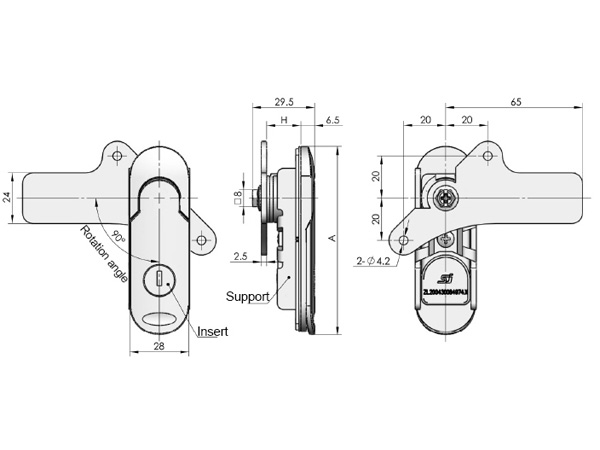

Specification	Model	ERP	Model	ERP
A=89 B=63	MS843-1	MS843Z2B080013	MS843-1A	MS843Z2B000011
A=107 B=80	MS843-2	MS843Z2B080016	MS843-2A	MS843Z2B000012
A=123 B=96	MS843-3	MS843Z2B080020	MS843-3A	MS843Z2B000005
Main Material and Finish		Nanometer painted ZDC handle and housing, white zinc plated steel support and cam
Application		Open the handle upward, quarter turn rotation opening
Default Key		K080

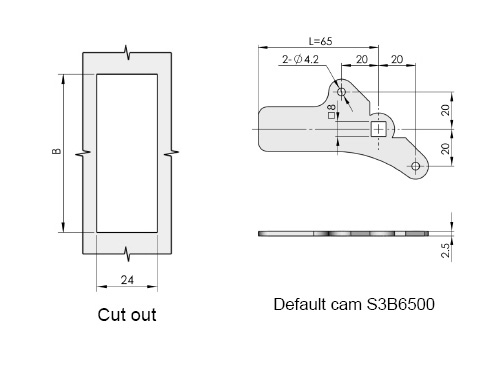

Default Cam		S3B65Y00002

Remarks: ERP excludes cam.

Remarks: Change the fitting position of the position device and cam to adjust the stop height, change the fitting direction to realize RH or LH application.
