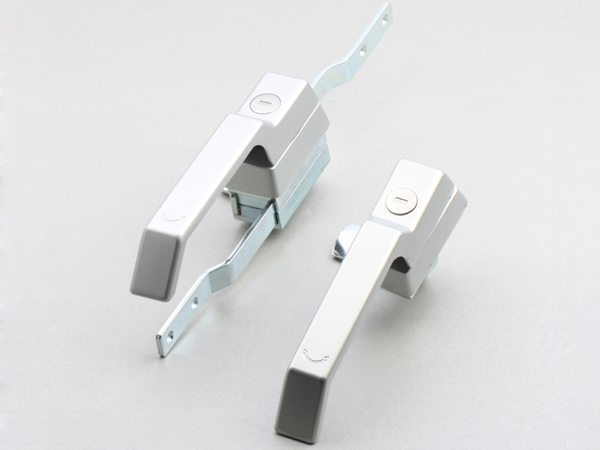

The MS835 swing handle lock makes use of the nanometer painted ZDC handle and housing, white zinc plated steel cam and rod, brass shaft, etc. The product supports 90 degree handle rotation combined with rod latch for opening or closing. Moreover, it is equipped with the K030 default key.
Technical SpecificationsSpecification | Model | ERP |

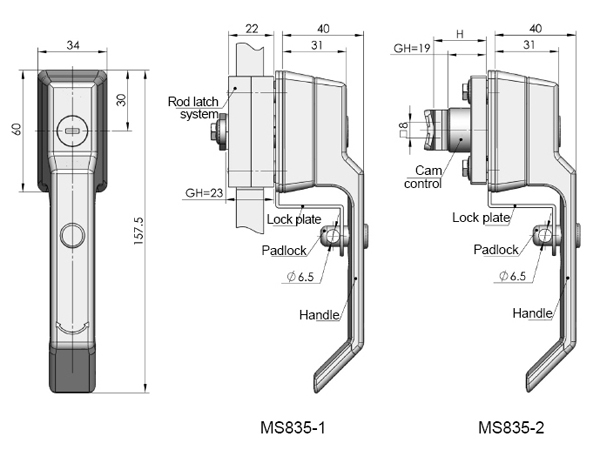

Optional rod latch system Mb21 | MS835-1 | MS835Z2B030001 |
Optional rod latch system Mb21, allowing locking with padlock | MS835-1P | MS835Z2B030002 |
Optional rod latch system Mb22 | MS835-1-2 | MS835Z2B030003 |
Optional rod latch system Mb22, allowing locking with padlock | MS835-1-2P | MS835Z2B030004 |
Cam latch system | MS835-2 | MS835Z2B030013 |
Cam latch system, allowing locking with padlock | MS835-2P | MS835Z2B030006 |

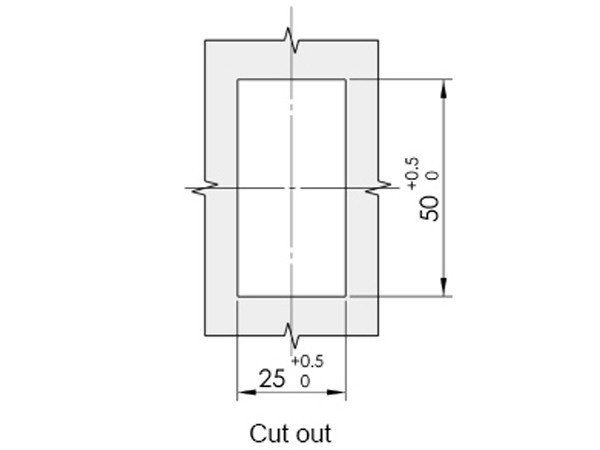

Remarks: Door thickness Ts=1~2mm( Allowing locking with padlock), Ts=1~4mm(Unavailable for locking with padlock).
Optional Accessories:
Cam latch system Mb9 series, rod latch system Mb2 series.
