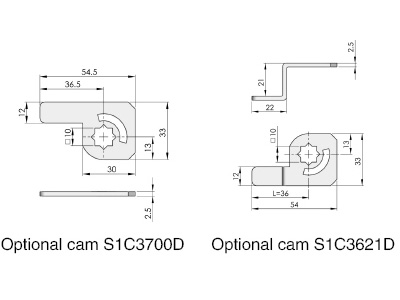

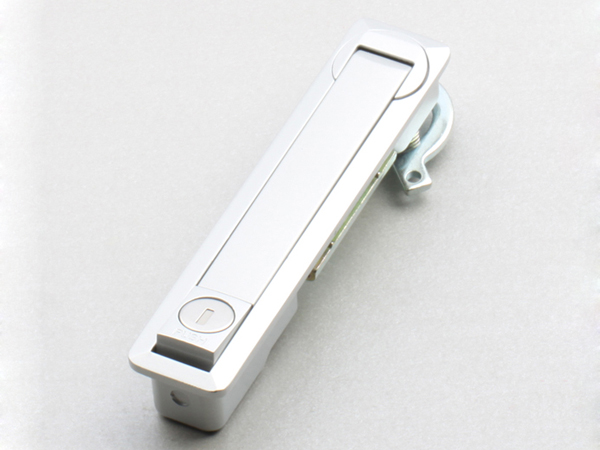

The MS736 swing handle lock chooses the nanometer painted ZDC housing and handle, ZDC insert, white zinc plated steel support and cam. Apart from the properties of quick opening and simple installation, the product can also realize one point locking or three points locking function mounted with different cams.

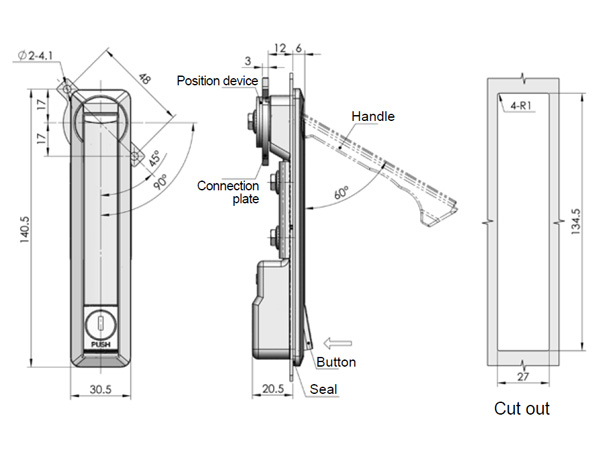

Remarks: Change the assembling position of the position device and cam to adjust the stop height, thickness of position device is 1.5mm, change the fitting direction of position device to realize RH or LH application.
