Home » Products » Swing Handle Lock » MS726 Swing Handle Lock

The MS726 swing handle lock is available in several types including the MS726-1, MS726-1A, MS726-2 and MS726-3. Our product is easy for installation and opening in a short time. Moreover, it works with variable handle through adjusting the nut.

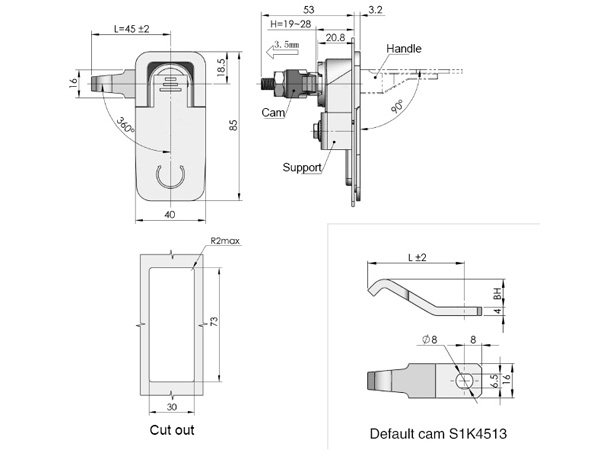

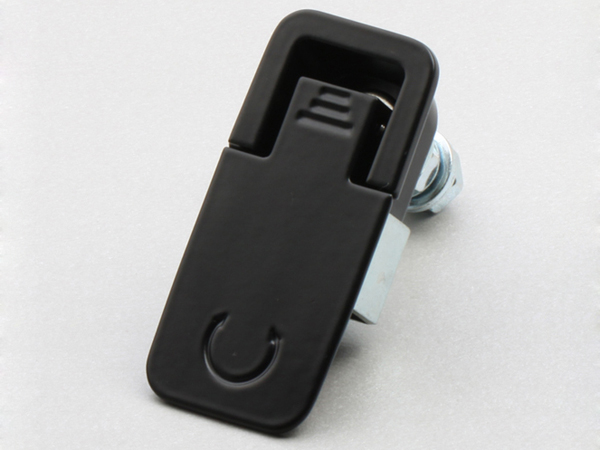

MS726-1
This MS726-1 type is equipped with the ZDC housing and handle, white zinc plated steel support and cam. The S1K45Y13009 default cam is selected for configuration.

Technical Specifications

Specification	ERP
Black powder coated hosing, handle	MS726Z1A000011
Bright chrome painted hosing, handle	MS726Z3A000001
Nanometer painted hosing, handle	MS726Z2B000015

Remarks: ERP excludes cam.

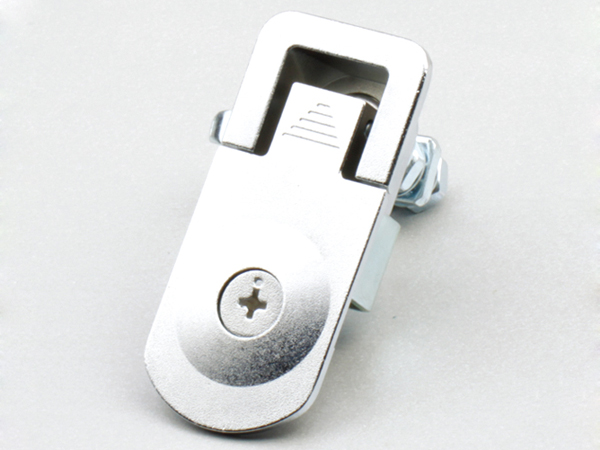

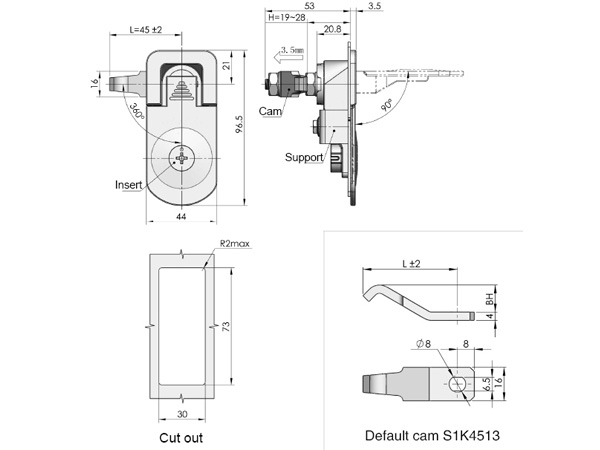

MS726-1A
The MS726-1A swing handle lock is configured with the sand spraying and bright chrome plating ZDC housing, handle and insert, as well as the white zinc coating steel support and cam.

Technical Specifications of MS726-1A

Model	ERP	Default Cam
MS726-1A	MS726Z3H000009	S1K45Y13009

emarks: ERP excludes cam.

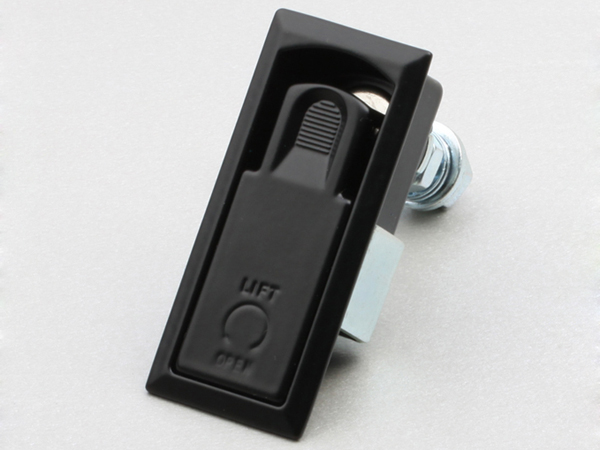

MS726-2
The MS726-2 type adopts the ZDC housing, handle and the steel support plated with white zinc, as well as the S1K36Y06002 default cam.

Technical Specifications of MS726-2

Specification	ERP
Black powder coated hosing, handle	MS726Z1A000013
Bright chrome painted hosing, handle	MS726Z3A000002
Nanometer painted hosing, handle	MS726Z2B000004

Remarks: ERP excludes cam (cutout 8×6.5).

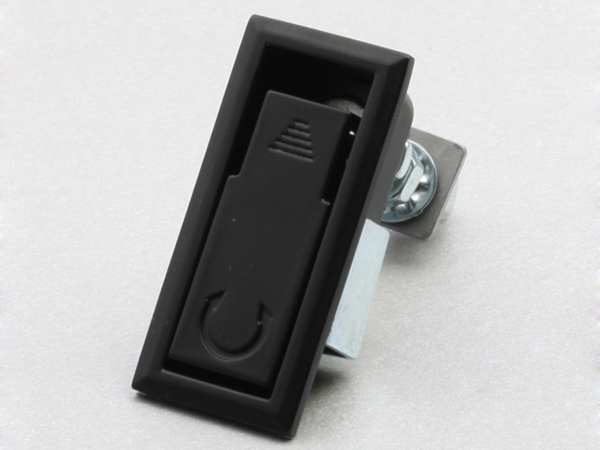

MS726-3
Apart from the black ZDC housing and handle, the MS726-3 swing handle lock also chooses the white zinc plating steel support and cam.

Technical Specifications of MS726-3

Model	ERP	Default Cam
MS726-3	MS726Z2A000009	S1W21Y09001

Remarks: ERP excludes cam.
