MS831 Swing Handle Lock

Home » Products » Swing Handle Lock » MS831 Swing Handle Lock
inquiry form

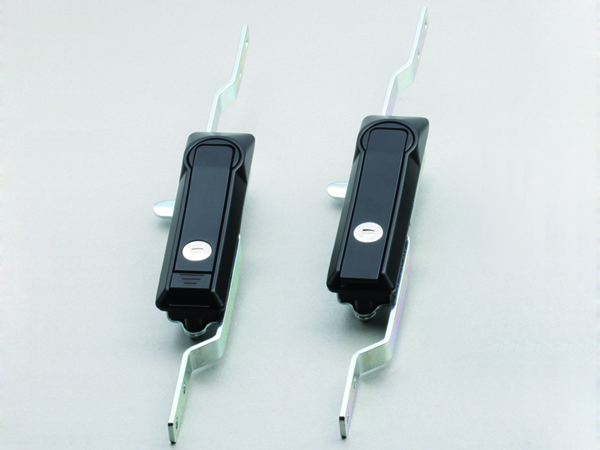

The MS831 swing handle lock adopts the black powder coated ZDC handle, housing and button, white zinc plated steel cam and rod. Due to the rod latch, the product can realize the opening and locking through swiveling the handle, which is able to rotate in 90 degree. Moreover, this product is simple for assembling and opening within a short time. It is configured with the K040 default key.

Optional Accessories:
Cam latch system Mb9 series, rod latch system Mb0 series.

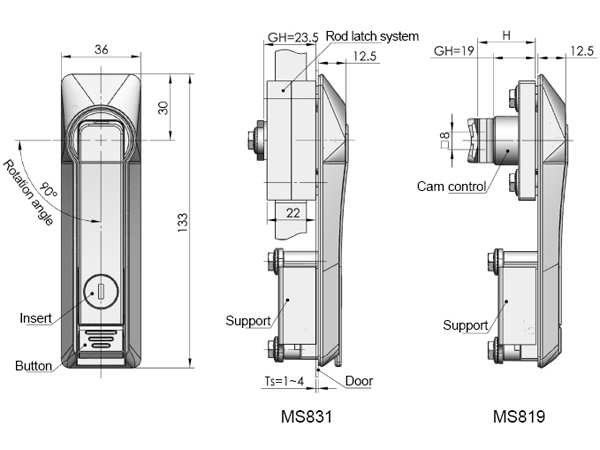

Technical Specifications
Specification Model ERP
With button, optional rod latch system Mb01 MS831-1 MS831Z2A040001
With button, optional rod latch system Mb02 MS831-1-2 MS831Z2A040003
Without button, optional rod latch system Mb01 MS831-2 MS831Z2A040005
Without button, optional rod latch system Mb02 MS831-2-2 MS831Z2A040006
Without button MS819-1 MS819Z2A040009
With button MS819-2 MS819Z2A040003

Related Names
Black Coated Rod Lock | Mechanical Fastening Device for Storage Room | High Security Rod Connection Lock
