РусскийL Handle Lock, Quarter Turn Lock, Electromechanical Lock, Swing Handle Lock, Paddle Lock

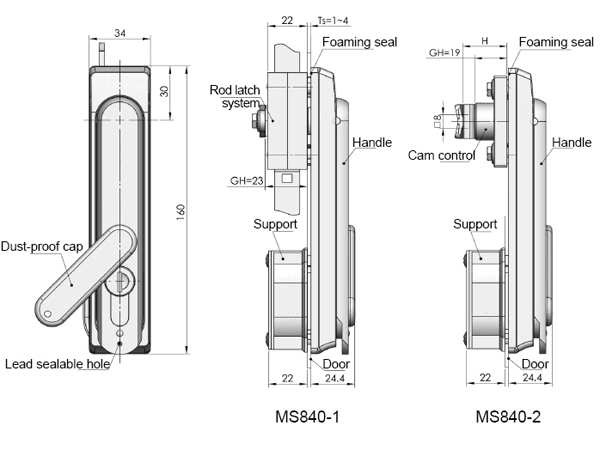

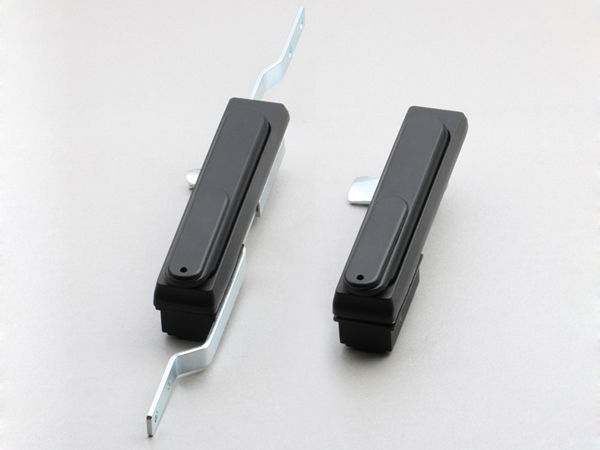

This MS840 swing handle lock is configured with the pocked black powder coated ZDC housing and handle, ZDC profile cylinder, white zinc plated steel cam and rod. Aided with the rod latch, the product allows the rotation of the handle in the angle of 90 degree for opening or locking. The K140 key is the default part.
Technical Specifications| Specification | Model | ERP |
| Optional rod latch system Mb01 | MS840-1 | MS840Z1B140001 |
| Optional rod latch system Mb01, allowing locking with padlock | MS840-1P | MS840Z1B140002 |
| Optional rod latch system Mb02 | MS840-1-2 | MS840Z1B140019 |
| Optional rod latch system Mb02, allowing locking with padlock | MS840-1-2P | MS840Z1B140020 |
| Cam latch system | MS840-2 | MS840Z1B140064 |
| Cam latch system, allowing locking with padlock | MS840-2P | MS840Z1B140014 |
Optional accessories
Cam latch system Mb9 series, rod latch system Mb0 series, TC01/TC02/TC03 profile cylinder.
Remarks: PA housing or ZDC housing, default ZDC housing
