MS864 Swing Handle Lock

Home » Products » Swing Handle Lock » MS864 Swing Handle Lock
inquiry form

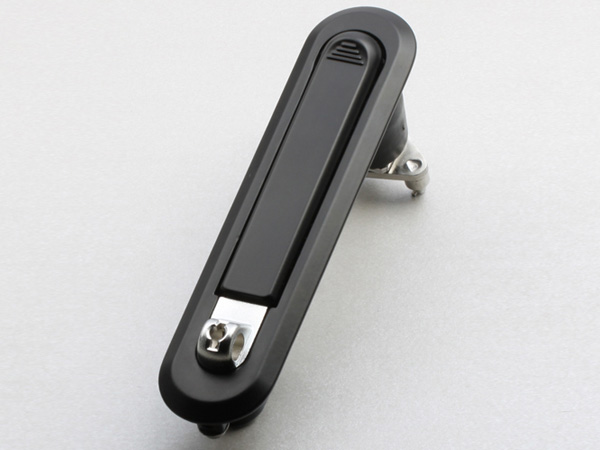

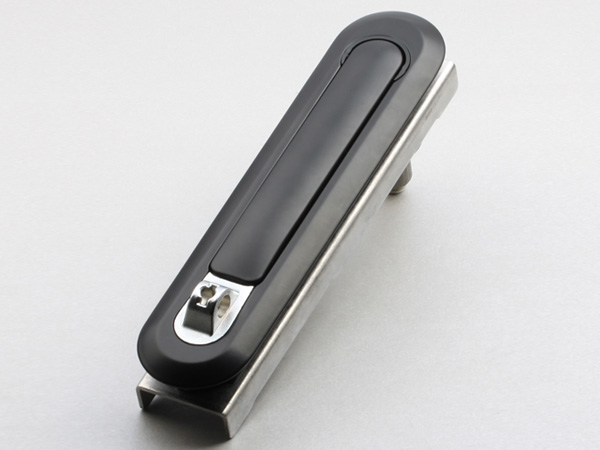

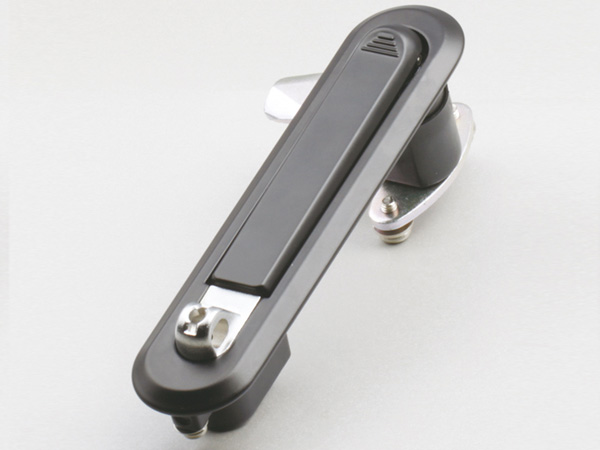

This MS864 swing handle lock is available in several types including the MS864-1 type, MS864-1A type, MS864-3 type and MS864-3A type. Our product is equipped with the padlock. Moreover, it allows quarter turning opening after opening the handle upward.

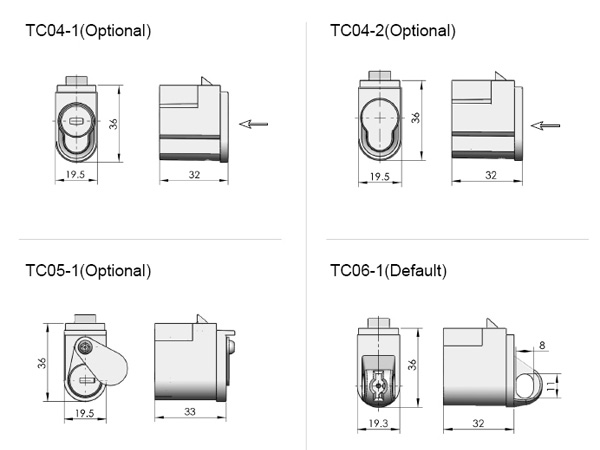

Remarks: Five optional profile cylinder for MS864-1, TC04~TC06-1, default profile cylinder TC06-1, the only difference from MS864-1A is the end height of housing, MS864-1A optional profile cylinder TC06-2, TC06-3,TC06-4, default profile cylinder TC06-2. Change the fitting position of position device and cam to suit RH and LH application.

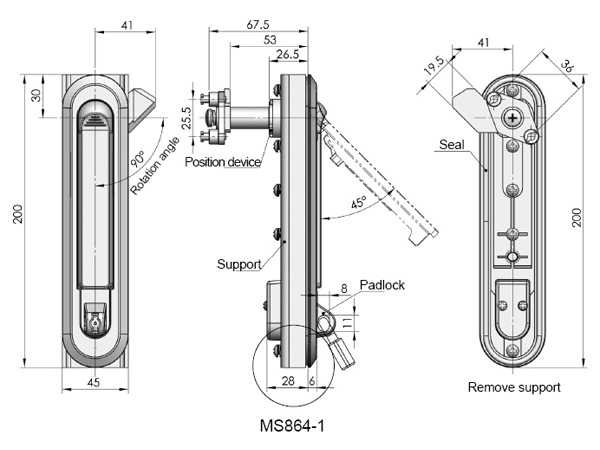

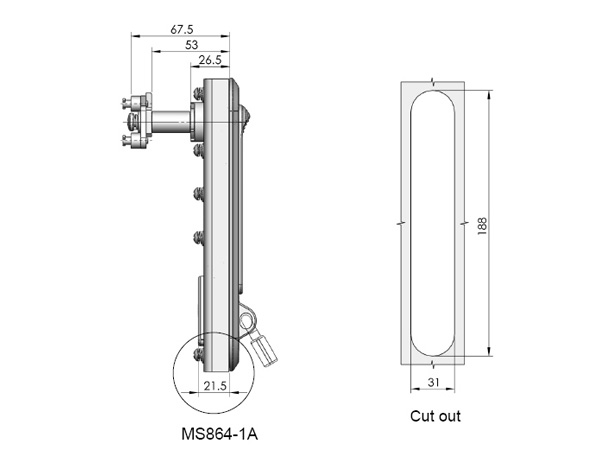

Technical Specifications of MS864-1/MS864-1A
Model ERP Main Material and Finish Default Profile Cylinder Default Key
MS864-1 MS864Z1A290001 Black powder coated ZDC housing and handle, ZDC shaft, white zinc-plated steel cam TC06-1 K290
MS864-1A MS864Z1A290003 TC06-4 K290
Remarks: Cam cutout square 10mm

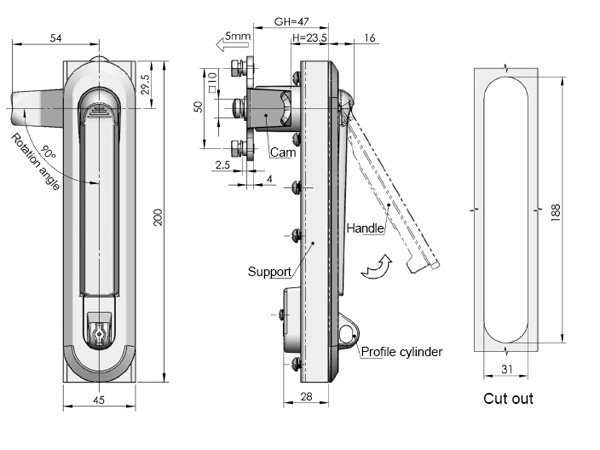

Technical Specifications of MS864-3
Model MS864-3
ERP MS864Z1A290027
Main Material and Finish Black powder coated ZDC housing and handle, stainless
steel shaft, white zinc-plated steel cam
Default Profile Cylinder TC06-1


Default Cam 2888643001
Remarks: ERP excludes cam.

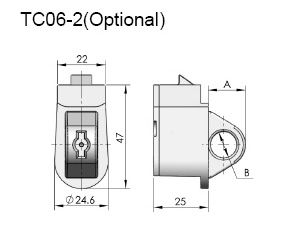

Parameters of Profile Cylinder
Profile cylinder A B
TC06-2 17 Φ12
TC06-3 26.5 Φ14
Default TC06-4 12 Φ8×11

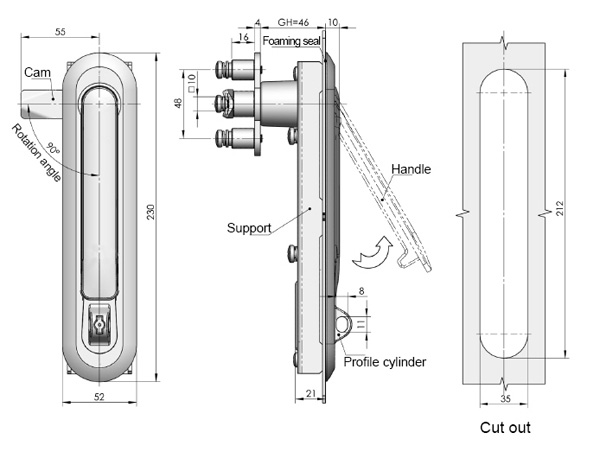

Technical Specifications of MS864-3A
Model ERP Main Material and Finish Default Profile Cylinder
MS864-3A MS864Z1A290015 Black powder coated ZDC housing and handle, stainless steel shaft, white zinc-plated steel cam TC06-4
