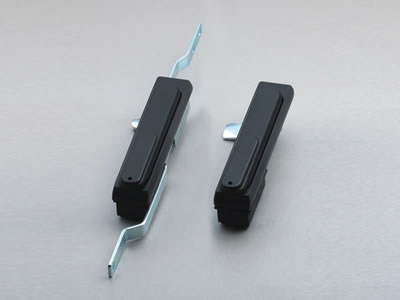

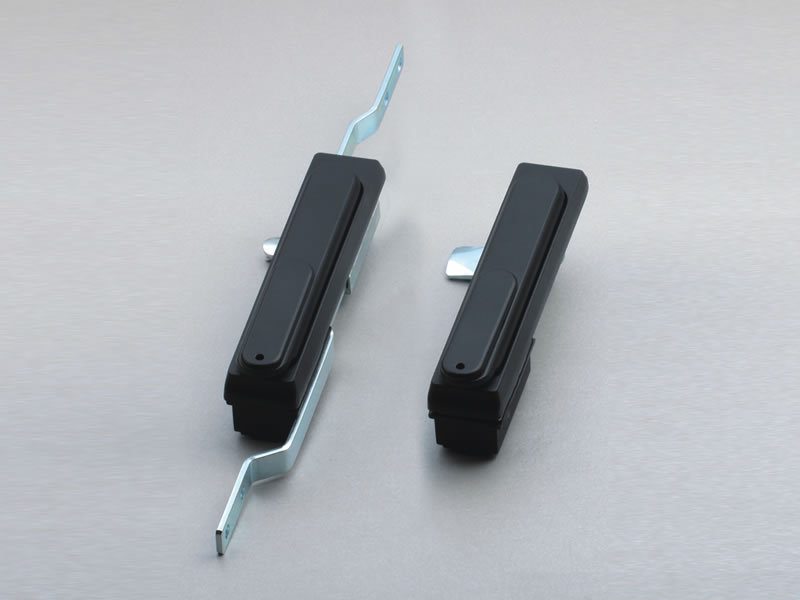

MS840-4 Swing Handle Lock

Home » Products » Swing Handle Lock » MS840-4 Swing Handle Lock
inquiry form



Technical Specifications
Material Zinc alloy housing and handle, galvanized steel cam
Finish Black painted housing and handle
Usage In combination with cam, handle can rotate 45° to easily open or close the lock The direction of position device and cam can be changed to suit LH or RH application
Handle tension ≤400N
Handle torque ≤35N.m

Features
1.Magnet is used to open or close the lock. The locking mechanism is hidden under the lock. The profile cylinder is superior to normal cylinders.
Put the magnetic key on the groove of the handle and swivel the handle to open the lock.

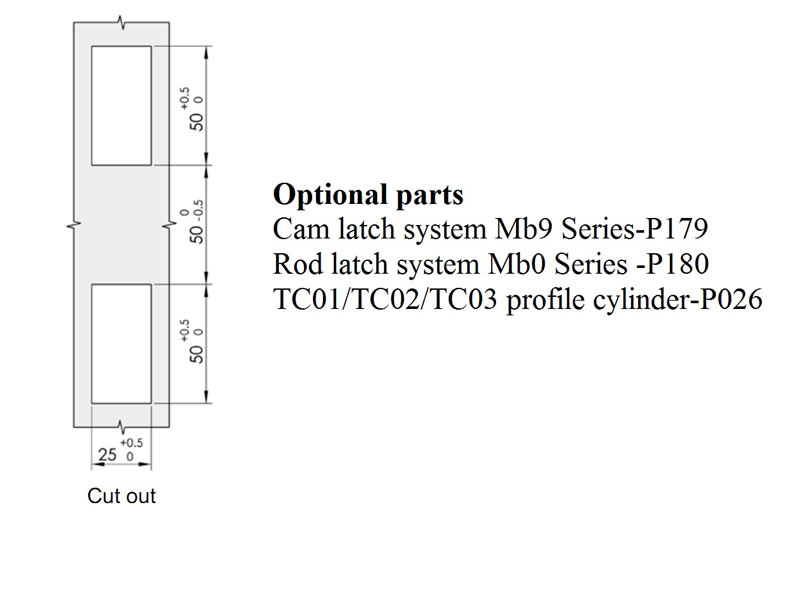

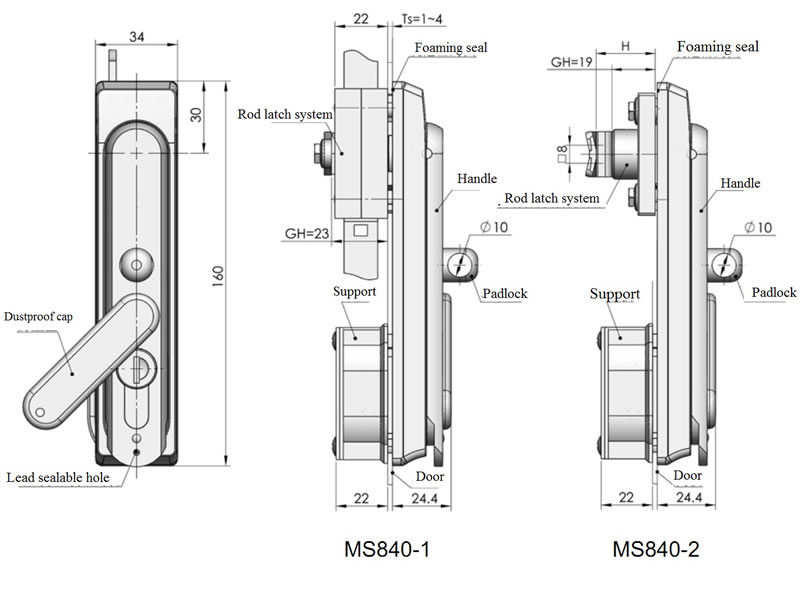

Drawing
