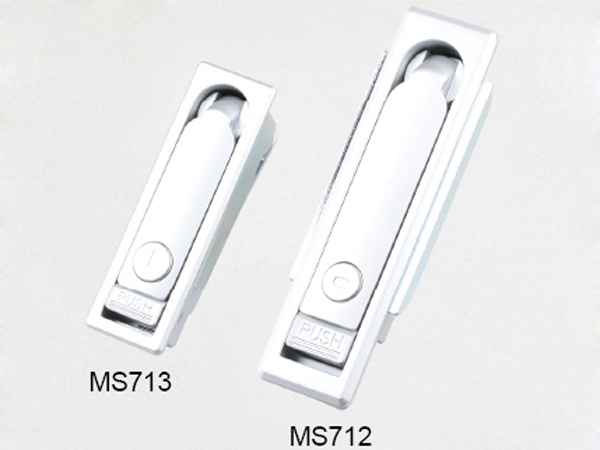

MS712/MS713 Swing Handle Lock

Home » Products » Swing Handle Lock » MS712/MS713 Swing Handle Lock
inquiry form

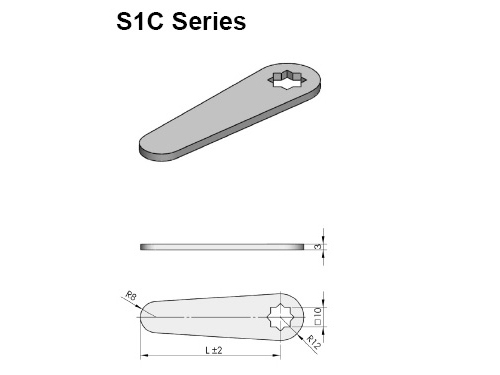

The swing handle lock is configured with the nanometer painted ZDC housing and handle, ZDC insert, white zinc coated steel support and cam. The product can be installed with different cams to realize one point locking or three-point locking, although the default cam is S1C72Y00002. This product supports quick opening and simple installation.

Technical Specifications

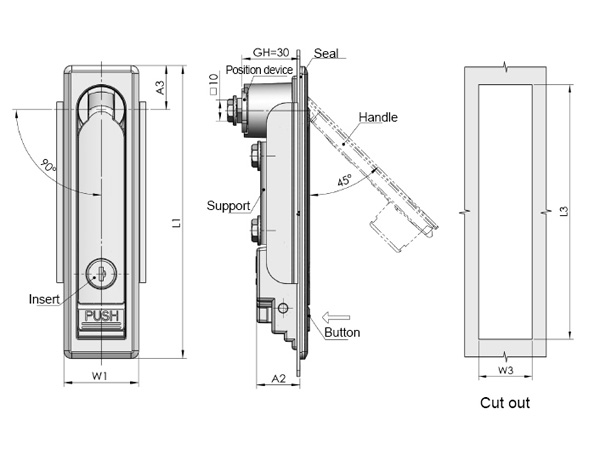

Model ERP L1 L3 W1 W3 GH A1 A3 Cam Default Key
MS712 MS712Z2B040024 149 139.5 38 29.5 30 22 22.5 S1C7200 K040
MS712-2A MS712Z2B110017 132 124 33.5 27.5 30 22 17 S1C7200 K110
MS712-3A MS712Z2B110018 92 84 33.5 27.5 30 22 17 S1C7200 K110
MS713 MS713Z2B090046 110 102 33.5 27 30 22 17 S1C6200 K090
Remarks: ERP excludes cam.

Remarks: Change the fitting position or angle of positioning device and cam to realize LH or RH application.
