MS816-3S Quarter Turn Lock

Home » Products » Quarter Turn Lock » MS816-3S Quarter Turn Lock
inquiry form

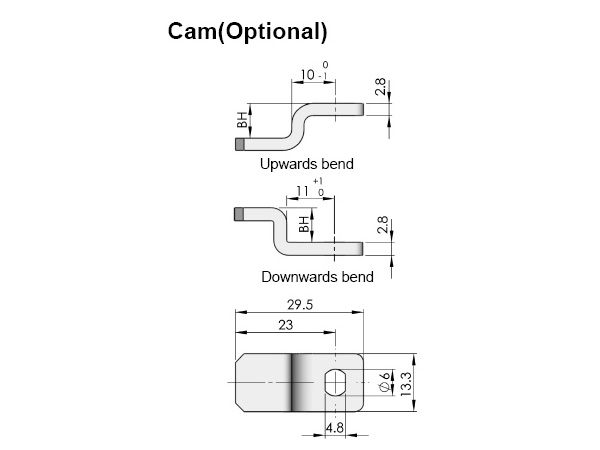

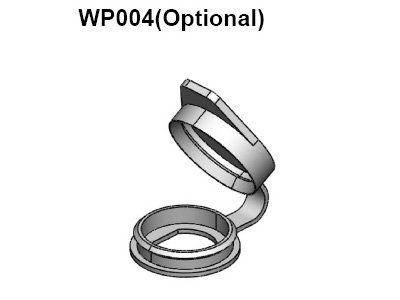

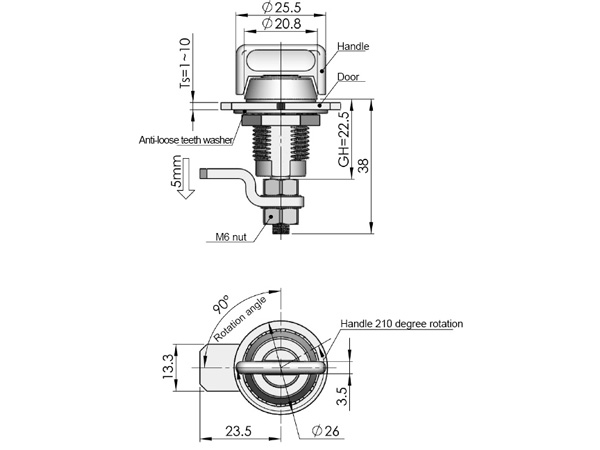

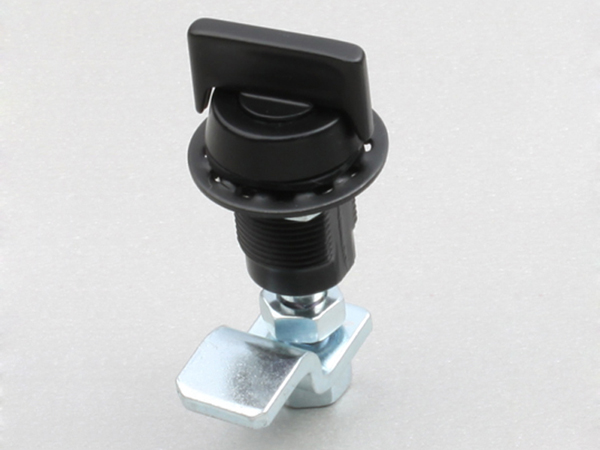

The MS816-3S quarter turn lock is configured with the black ZDC housing, insert and handle, white zinc coated steel cam and waterproof PA cap. Due to the rotated cam, the product allows opening or closing in quarter turning.

Technical Specifications
Specification Model ERP Optional Key
Handle MS816-3S-1 MS816Z2A000028

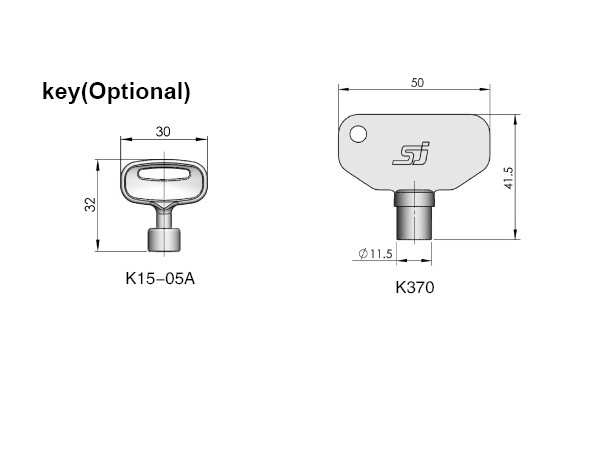

6mm Square MS816-3S-2 MS816Z2AT05001 K15-05A
Abnormal MS816-3S-3 MS816Z1AT21002 K370
Slot MS816-3S-4 MS816Z1AT18006

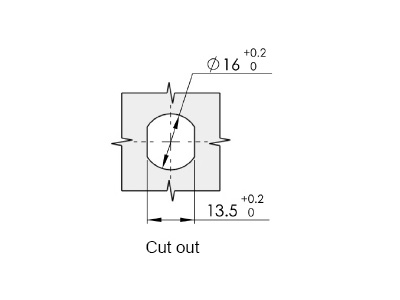

Remarks: ERP excludes cam (cut out 6×4.7).
