MS705-3E Quarter Turn Lock

Home » Products » Quarter Turn Lock » MS705-3E Quarter Turn Lock
inquiry form

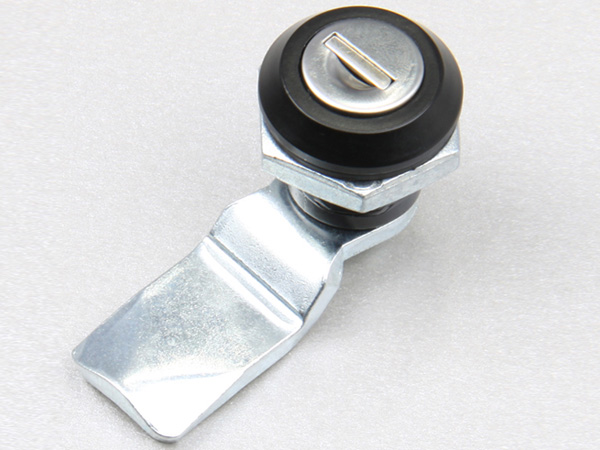

Apart from the pocked black powder coating ZDC housing, the MS705-3E quarter turn lock is equipped with the white zinc plating steel cam. This product can be opened or locked through quarter turning.

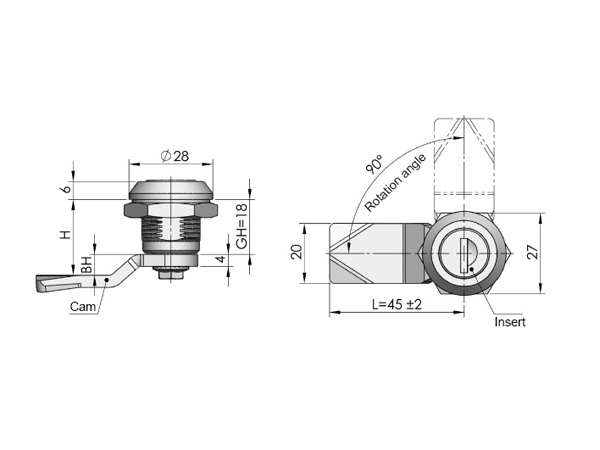

Technical Specifications
Model Specification ERP Default Key
MS705-3E ZDC housing, insert (RH-rotation) MS705Z1A140026 K140
MS705-3E-2 ZDC housing, insert (LH-rotation) MS705Z3A140011 K140
MS705-3E-F PA housing, insert (RH-rotation) MS705N00140007 K140

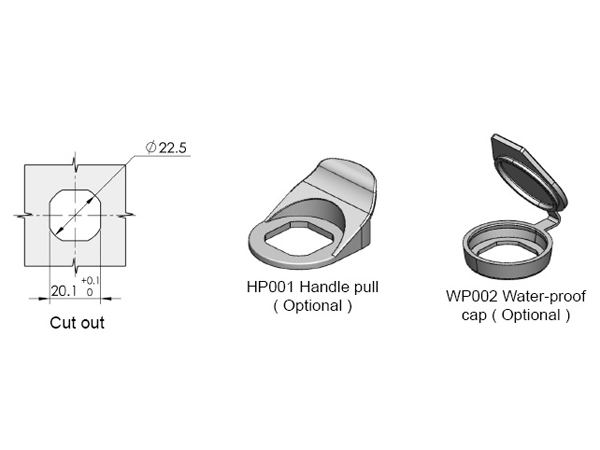

Remarks: ERP excludes cam (cut out square 8mm).

Related Names
Cabinet Doorknob Equipped with Lock | High Strength Cabinet Lock | Decorative Door Knob
