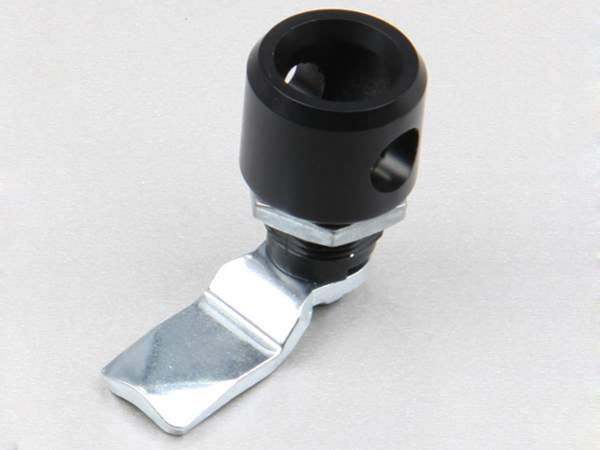

The MS763 quarter turn lock adopts the ZDC housing and insert, which are coated with black powder on the surface. With the white zinc plating steel cam, the product can be opened or closed through quarter turning. In addition, the K15 series of keys are supplied for selection.
Technical Specifications| Specification | Black Painted Housing, Insert | S.S Housing, Insert | Optional Key | ||
| Model | ERP | Model | ERP | ||
| Double bit 4mm | MS763-1 | MS763Z2AT02005 | MS763-1B | MS763S4BT02001 | K15-01A K15-01F K15-01E |
| Double bit 3mm | MS763-1A | MS763Z2AT01003 | MS763-1AB | MS763S4BT01001 | K15-01A K15-01F K15-01E |
| Hooked 4mm | MS763-2 | MS763Z2AT03001 | MS763-2B | MS763S4BT03001 | K15-01A |
| Triangular 8mm | MS763-3 | MS763Z2AT04001 | MS763-3B | MS763S4BT04001 | K15-03A K15-03F |
| Square 8mm | MS763-4 | MS763Z2AT07001 | MS763-4B | MS763S4BT07001 | K15-04B K15-04F |
| Square 8mm with Slot | MS763-4A | MS763Z2AT08001 | MS763-4AB | MS763S4BT08001 | K15-04B K15-04F |
| Square 6mm | MS763-5 | MS763Z2AT05001 | MS763-5B | MS763S4BT05002 | K15-05B K15-05F K15-05A |
| Square 7mm | MS763-6 | MS763Z2AT06001 | MS763-6B | MS763S4BT06001 | K15-06A K15-06F |
| 10mm Hexagon Slot | MS763-7 | MS763Z2AT09003 | MS763-7B | MS763S4BT09001 | K15-07A/K15-07F |
| Slot | MS763-8 | MS763Z2AT10005 | MS763-8B | MS763S4BT10001 | |
| 11mm Hexagon Male | MS763-9 | MS763Z2AT11001 | MS763-9B | MS763S4BT11001 | K15-09A/K15-09F |
| Thorn | MS763-10 | MS763Z2AT12001 | MS763-10B | MS763S4BT12001 | K15-10A |
| Flat Cylinder | MS763-11 | MS763Z2AT13001 | MS763-11B | MS763S4BT13001 | K15-11A |
| Triangular 7mm | MS763-12 | MS763Z2AT14001 | MS763-12B | MS763S4BT14001 | K15-03A/K15-03F |
| Triangular 9mm | MS763-13 | MS763Z2AT15001 | MS763-13B | MS763S4BT15001 | |
| Heptagon Male | MS763-14 | MS763Z2AT16001 | MS763-14B | MS763S4BT16001 | |
| Triangular 10mm | MS763-15 | MS763Z2AT17001 | MS763-15B | MS763S4BT17001 | |
| Concave with Slot | MS763-16 | MS763Z2AT18001 | MS763-16B | MS763S4BT18001 | |
