MS705-K Quarter Turn Lock

Home » Products » Quarter Turn Lock » MS705-K Quarter Turn Lock
inquiry form

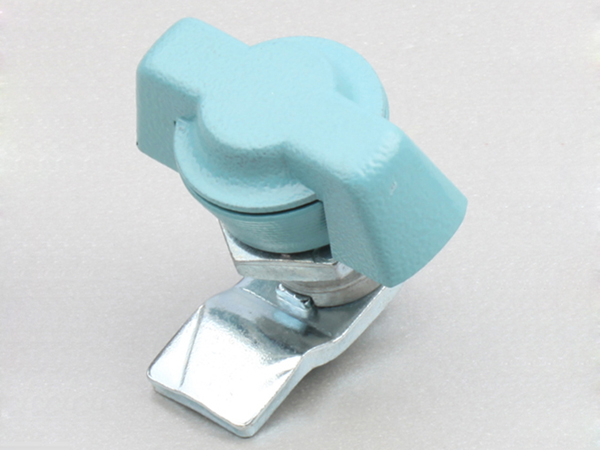

The MS705-K quarter turn lock is structured with the green powder coating ZDC handle, housing and insert, as well as white zinc-plated steel cam. The product allows opening or locking through quarter turning.

Technical Specification
Specification Default Cam Optional Key Model ERP

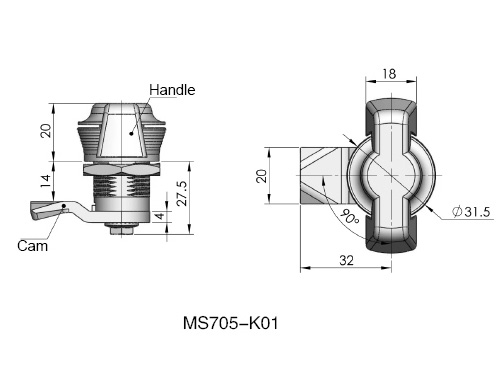

Handle S1B32N03001 K15-01 MS705-K01 MS705Z1F000015

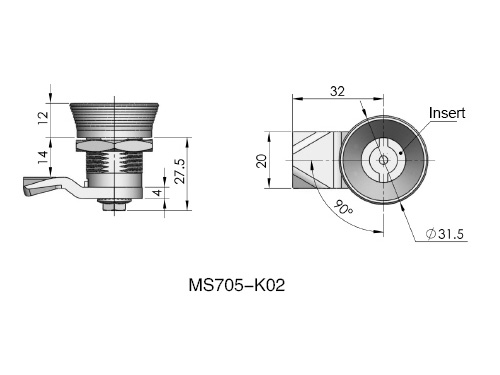

Double Bit S1B32N03001 K15-01 MS705-K02 MS705Z1FT01001
Remarks: ERP excludes cam (Cut out square 8mm).

Related Names
Communication Cabinet Lock | Cylindrical Lockset | Tubular Cabinet Door Lock Knob
