Lock opening method
Power-on opening; Emergency opening
Work voltage | DC5V |
Work current | ≤ 0.3A |
Power-on time | 15S |
Communication interface | DO/DI |
Wire material | UL2464/26AWG/L2000 |
Work temperature | -40 ~ 60°C |
IP rating | IP65 (front) |
Material | Zinc alloy: housing, handle |
304 Stainless steel: cam | |
Q235: support |
Instruction of Usage
1.Opening the handle, gray and orange wires are connected; Closing the handle, gray and orange wires are disconnected.
2.The stop height can be changed by adjusting the number of washers.
3.Electronic cylinder or mechanical cylinder is optional.

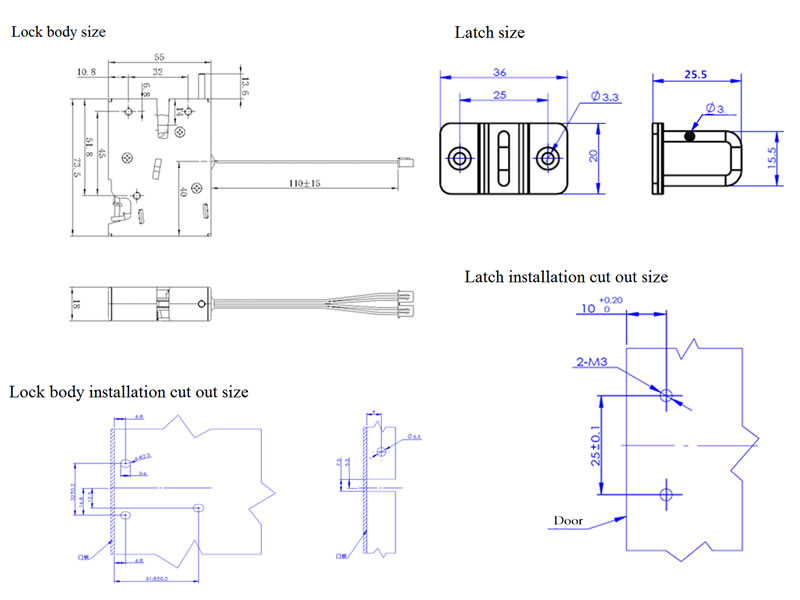

Drawing
