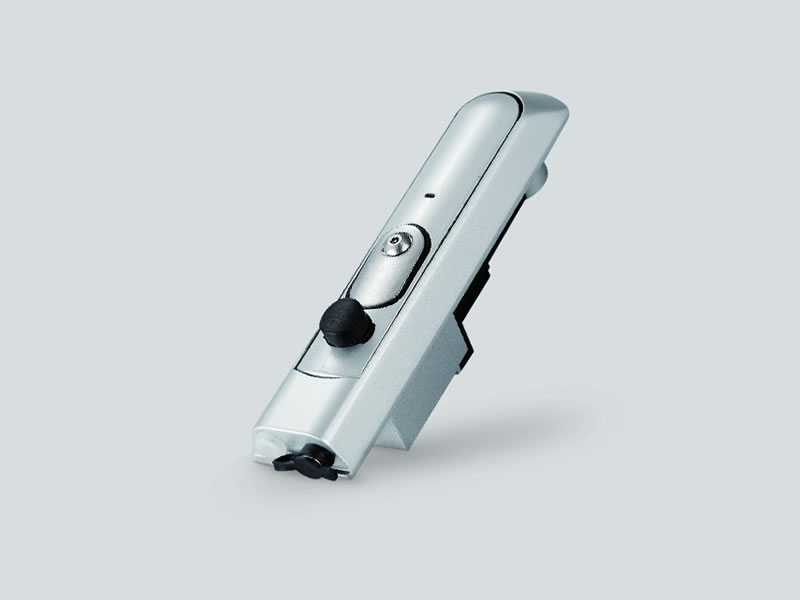

DS712-9 Electromechanical Lock

Home » Products » Electromechanical Lock » DS712-9 Electromechanical Lock
inquiry form

Lock opening method
Power-on opening; Emergency opening

Technical Specifications
Work voltage DC5V
Work current ≤ 0.3A
Power-on time 15S
Communication interface DO/DI
Wire material UL2464/26AWG/L2000
Work temperature -40 ~ 60°C
IP rating IP65 (front)
Material Zinc alloy: housing, handle
304 Stainless steel: cam
Q235: support

Instruction of Usage
1.Opening the handle, gray and orange wires are connected; Closing the handle, gray and orange wires are disconnected.
2.The stop height can be changed by adjusting the number of washers.
3.Electronic cylinder or mechanical cylinder is optional.

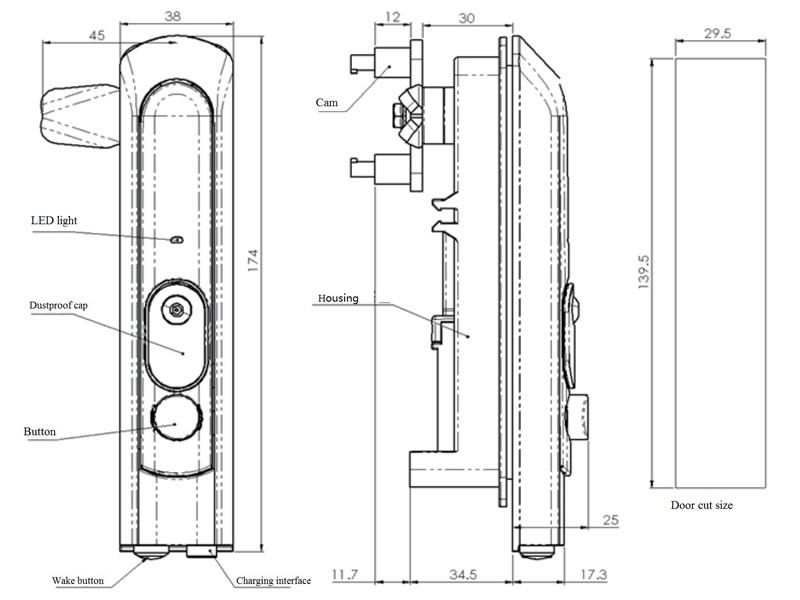

Drawing
