РусскийL Handle Lock, Quarter Turn Lock, Electromechanical Lock, Swing Handle Lock, Paddle Lock
| Work voltage | DC5V |
| Work current | ≤ 0.3A |
| Power-on time | 15S |
| Communication interface | DO/DI |
| Wire material | UL2464/26AWG/L2000 |
| Work temperature | -40 ~ 60°C |
| IP rating | IP65 (front) |
| Material | Zinc alloy: housing, handle |
| 304 Stainless steel: cam | |
| Q235: support |
Instruction of Usage
1.Opening the handle, gray and orange wires are connected; Closing the handle, gray and orange wires are disconnected.
2.The stop height (the height from door plate to cam) can be changed by adjusting the number of washers.
3.This electromechanical lock is applicable to installation of different hole positions.

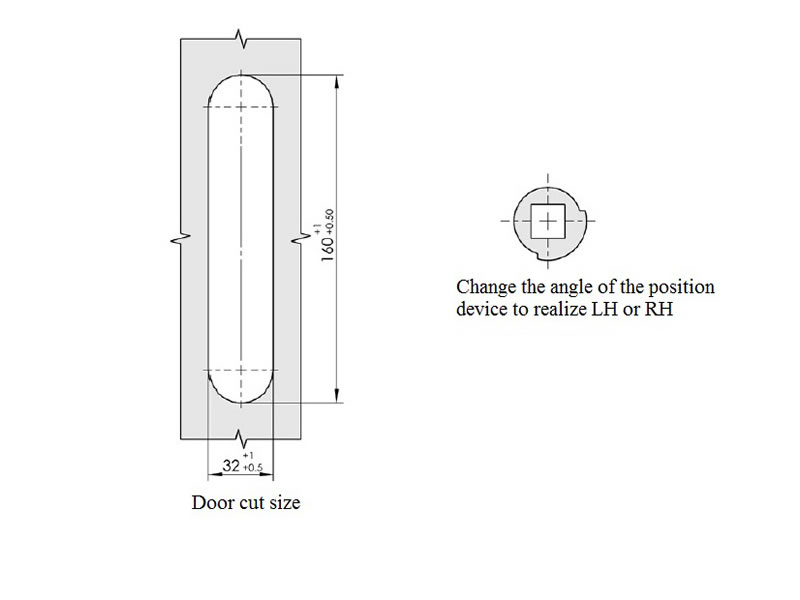

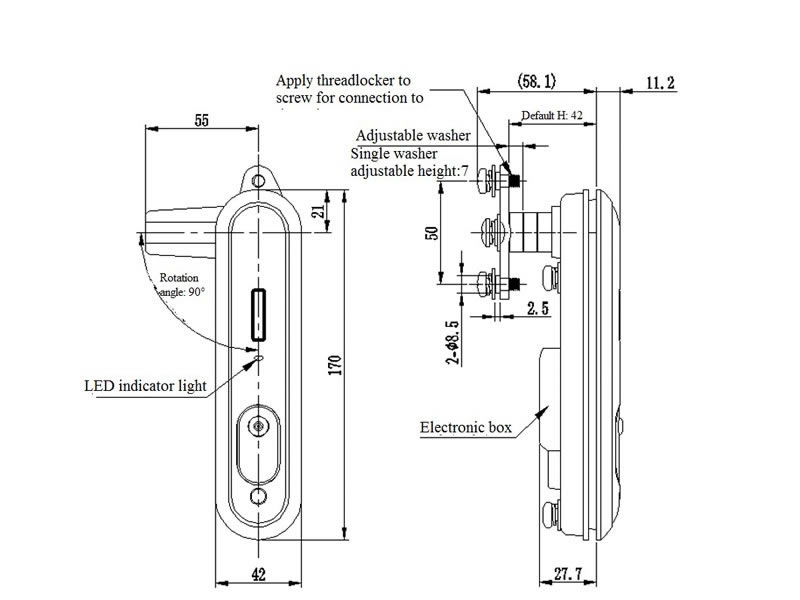

Drawing
