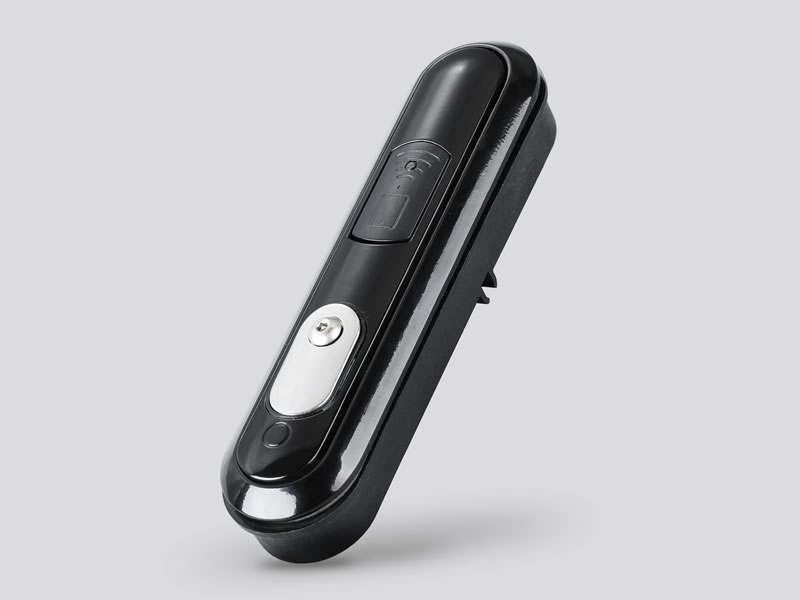

DS899-1A Electromechanical Lock

Home » Products » Electromechanical Lock » DS899-1A Electromechanical Lock
inquiry form

Lock opening method
Swiping card opening;
485 instruction opening;
Emergency key opening.

Technical Specifications
Work voltage DC11~13V
Work current ≤ 0.5A
Communication interface RS485
Work frequency 13.56MHz
Swiping card distance 0 ~ 5 mm
Wire material UL2464/26AWG/L2000
Work temperature -20 ~ 60°C
IP rating IP65 (front)
Material Zinc alloy: housing, handle
304 Stainless steel: cam
PA6 + 30%GF support

Instruction of Usage
1.Wake button: wake up the background controller
2.Remote control opening: the indicator light shines and motor acts. User pulls the handle to open the lock.
3.Key opening: Use a pentagonal key to open the dustproof cap. Insert the electronic key, rotate the lock cylinder clockwise and pull the handle to open the lock. Return the key 45° to ensure automatic locking after closing the handle.

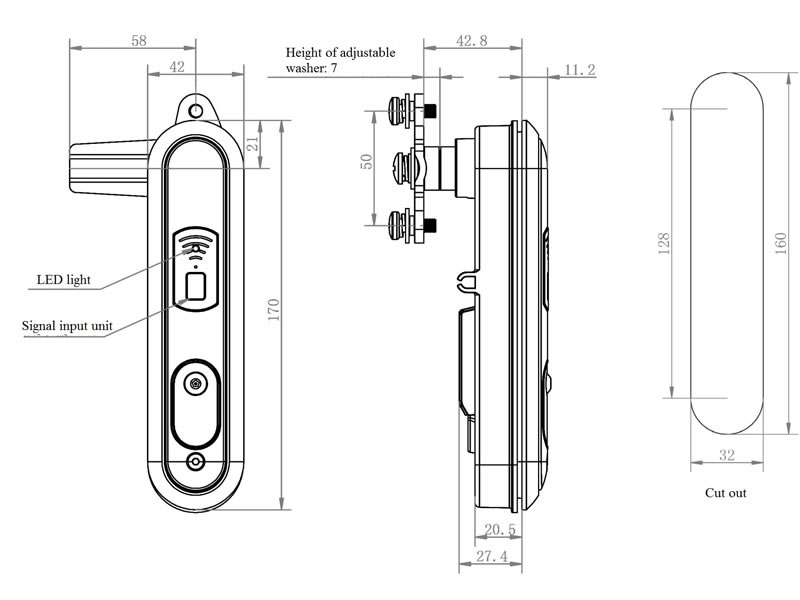

Drawing
