CL226-1 Butterfly Hinge

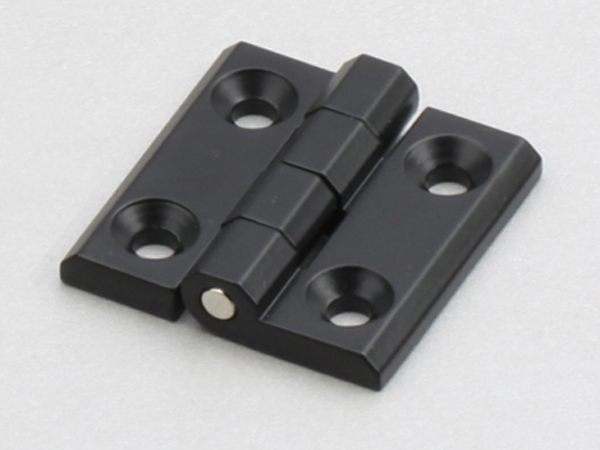

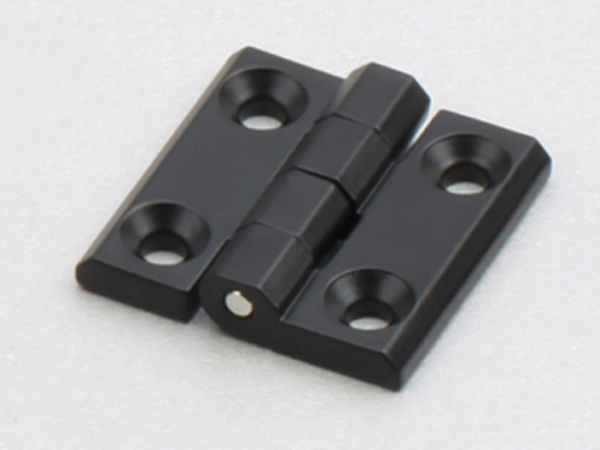

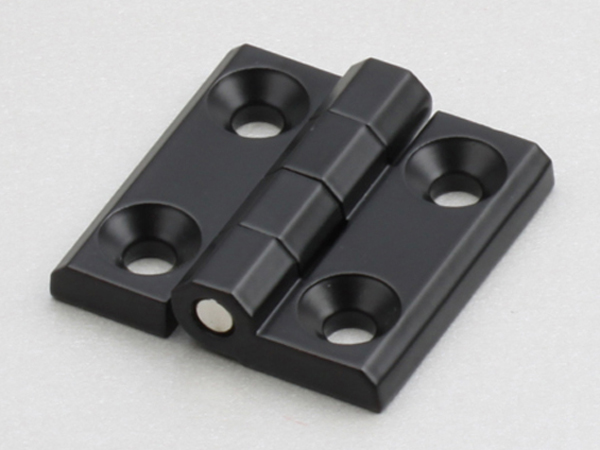

Our CL226 butterfly hinge is varied in specifications. Our product is configured with the ZDC hinge leaf coated with the black powder, the steel pin plated with the nickel. Moreover, its opening angle reaches 180 degree.

Technical Specification

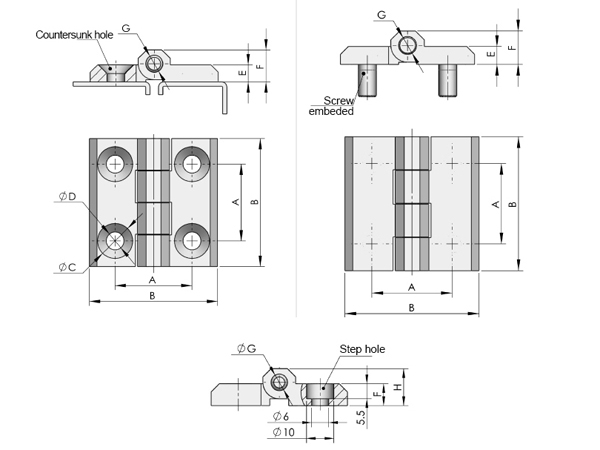

Model	ERP	Specification							Remarks
		A	B	C	D	E	F	G
CL226-1	CL226Z1A001	36	60	16.5	8.4	8	15	8	Countersunk hole, ZDC
CL226-1A	CL226Z1A006	36	60	16.5	8.4	8	15	8	Screw embedded, ZDC
CL226-1B	CL226S9C001	36	60	16.5	8.4	8	15	8	Countersunk hole, stainless steel
CL226-2C	CL226Z1A011	30	50	Refer to detailed drawing		6	11.5	6	Step hole, ZDC
