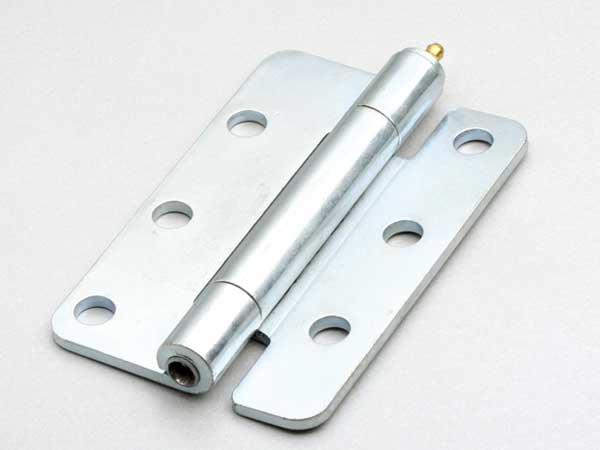

CL158 Butterfly Hinge

Features

Material: Carbon steel hinge and shaft
Finish: White zinc plating

Technical Specifications

Model	Max. Static Load		ERP
	Radial Load	Axial Load
CL158	3000N	2500N	CL158F3D001
