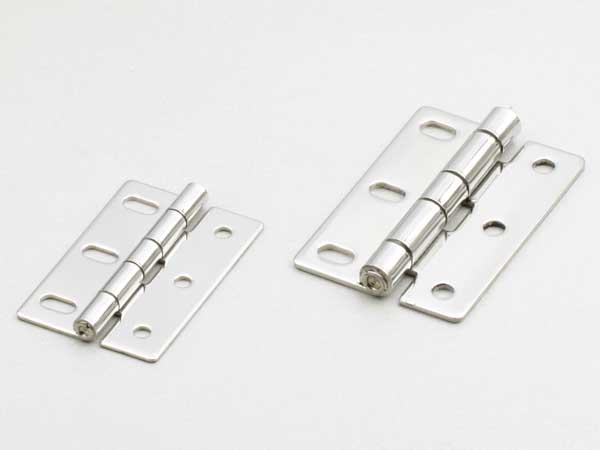

CL253-2/3 Stainless Steel Hinge

Features

Material: Stainless steel
Finish: Mirror polishing
Opening Angle: 180°

Technical Specifications

Model	Max. Static Load		ERP
	Radial Load	Axial Load
CL253-2	1000N	1200N	CL253S4A002
CL253-3	1500N	1800N	CL253S4A003
