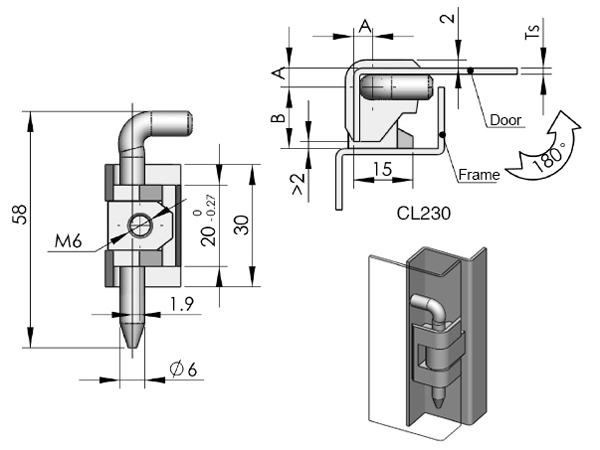

Technical Specifications
Model |
ERP |
Specification |
Material and Finish |
Application |

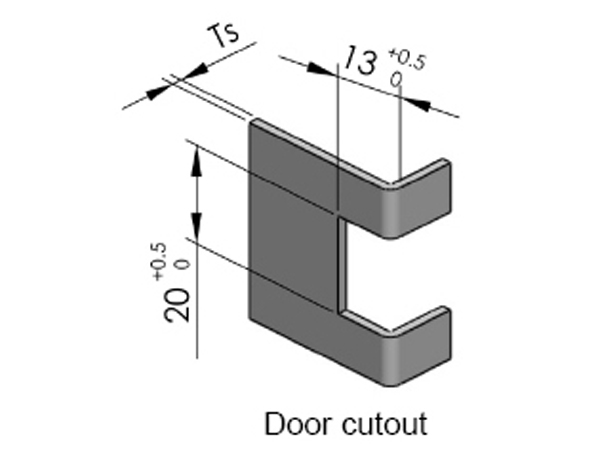

Door Thickness Ts |
A |
B |
Black powder coated ZDC hinge, nickel plating steel pin |
Opening angle 180° |
CL230-1 |
CL230Z1A001 |
Ts=1.5mm |
4.6 |
15 |
CL230-2 |
CL230Z1A013 |
Ts=2mm |
5.1 |
15 |
CL230-1A |
CL230Z1A004 |
Ts=1.5mm |
4.6 |
17 |
CL230-2A |
CL230Z1A016 |
Ts=2mm |
5.1 |
17 |
CL230-1B |
CL230Z1A007 |
Ts=1.5mm |
4.6 |
19 |
CL230-2B |
CL230Z1A019 |
Ts=2mm |
5.1 |
19 |

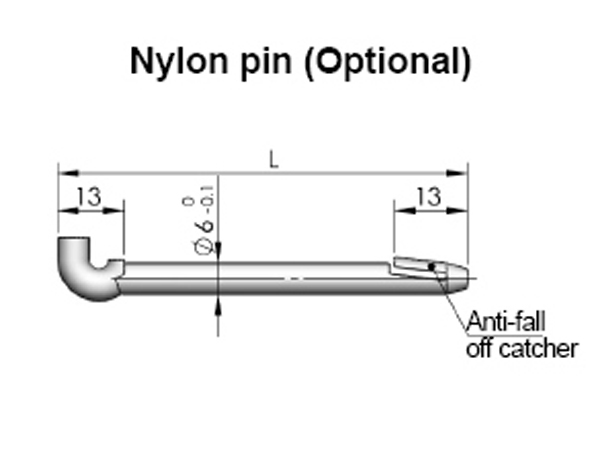

Part No. |
L |
PN001 |
57 |
PN002 |
78 |
